10 Best Deep Cycle Batteries for RV Solar (October 2026)

A deep cycle battery is the part of an RV solar system that actually stores what your panels collect. If you are searching for the best deep cycle batteries for RV solar, the short answer is this: a sealed AGM battery still does the job best if you want zero rewiring, while a 100Ah LiFePO4 lithium battery is the better long-term buy for almost any new build because it weighs about a third as much and can be discharged far deeper. Our pick for the all-round slot is the Renogy 12V 100Ah AGM, and our pick for a fresh install is the LiTime 12V 100Ah Group 31 LiFePO4.

We spent the last several seasons living with 100Ah and 200Ah banks on our own trailer and comparing the specs that actually matter on an RV: usable amp-hours, cold-weather charging behaviour, physical fit in a Group 24 or Group 31 box, and whether the inverter/charger will cooperate with the chemistry. Everything below is manufacturer-rated data, not guesswork.

The forum consensus is worth hearing early. On r/RVLiving, owners put it bluntly: even the bottom of the LiFePO4 range outperforms a lead-acid deep cycle battery and lasts considerably longer. That is broadly true, and it is why eight of the ten picks here are lithium. But the three AGM options still earn their place, because a lot of rigs have a charger that refuses to talk to lithium, or a tray that will not take the weight difference gracefully.

One more note before we start: the batteries below all store power, they do not create it. If your panel array is undersized, no chemistry change will fix that. We link out our guides to RV solar panels for boondocking and complete RV solar kits for that side of the equation.

Top 3 Picks for Best Deep Cycle Batteries for RV Solar

All 10 Deep Cycle Batteries for RV Solar Compared in 2026

Every battery below is a genuine deep cycle unit, not a starter battery in disguise. The four lithium Group 24 options share a case size, which is the main reason to choose between them is warranty length, Bluetooth monitoring and how much long-term owner history exists.

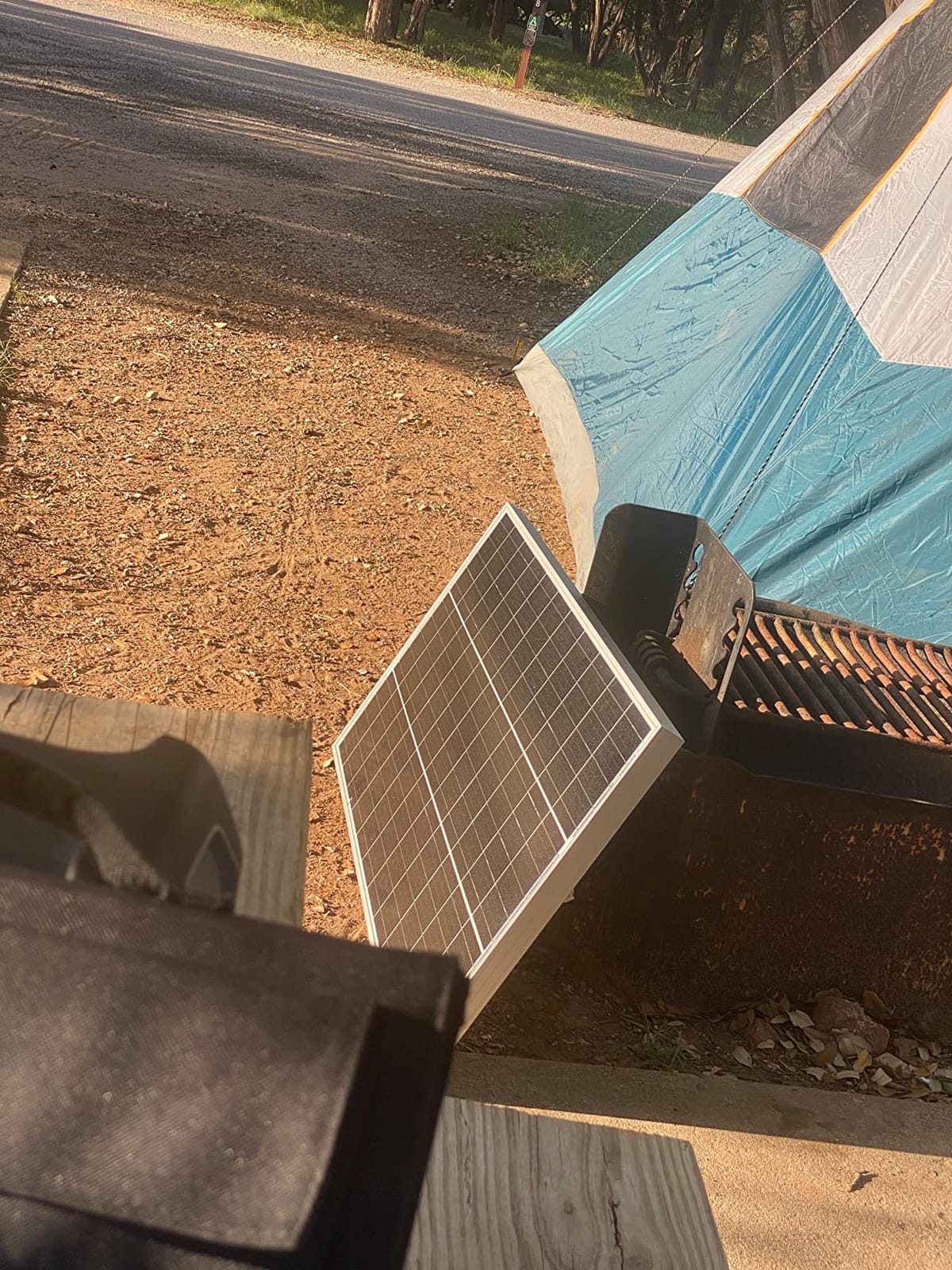

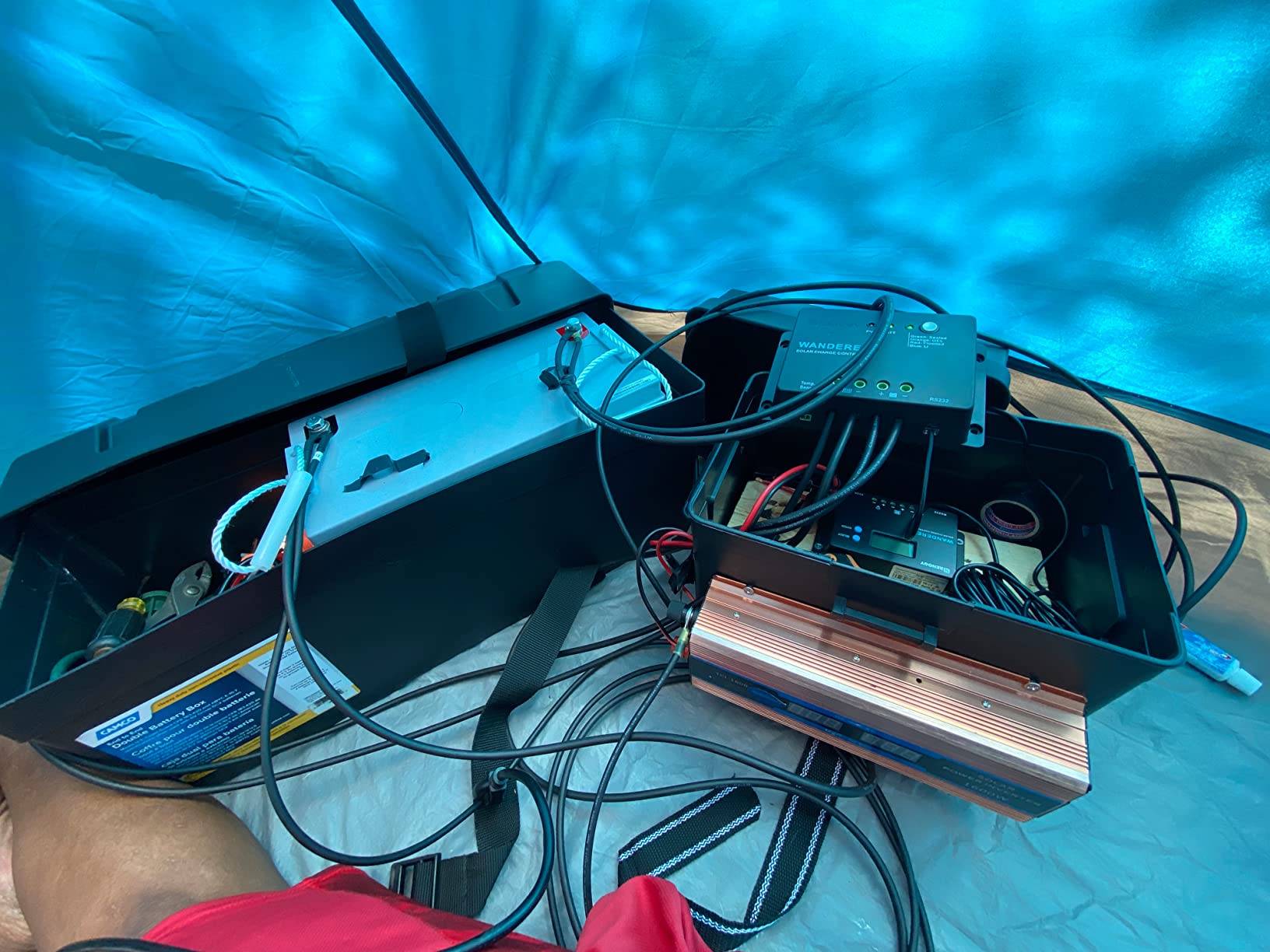

1. Renogy 12V 100Ah AGM Deep Cycle Battery – Best Overall Pick

This is the battery we keep coming back to when someone asks what to actually put in their existing RV. It is a sealed absorbed glass mat unit rated at 100 amp-hours and 12 volts, and it drops straight into the same wiring and the same charger setup most trailers already have. There is no lithium profile to hunt for in the inverter menu, which removes the single most common post-purchase headache people report in RV forums.

The 1100A maximum discharge current over five seconds is the number that matters for inverter loads. It covers a fridge, a microwave, a CPAP machine and a coffee maker being switched on without the bank sagging. Reviewers also report measured capacity close to the rated 100Ah when two of these run in parallel, which is how most RV solar builds use them.

Where it earns its reputation is longevity. With a solar charge controller topping it off on a regular basis and a sensible depth of discharge limit, owners on rvforum.net note that five years is not unusual for a quality deep cycle battery, and many report seven to ten years of use. That consensus matters here more than any cycle number on a spec sheet, because AGM batteries punish neglect far harder than lithium does.

The Renogy warranty is two years prorated, which is the weakest part of the package. Prorated means a year-four failure gets you a partial credit rather than a new battery, so treat that as the reason to buy, not the reason to avoid. Over 230000 units sold worldwide in six years suggests the failure rate is low, but the warranty terms are what they are.

Why this one fits most existing RVs

The physical profile is the quiet hero here. At 13.1 by 6.9 by 8.6 inches it is a Group 24 footprint, so it drops into the tray that most travel trailers and Class C rigs were built with, and it works with up to four batteries wired in parallel. Four of these give you a 400Ah bank at 12 volts without any enclosure work.

Because the chemistry is conventional lead-acid, the charging profile is conventional too. Bulk, absorb and float stages on any smart charger or MPPT controller will bring it to full charge without special configuration. That is why this is the pick for anyone who wants to avoid rewiring an inverter charger.

When to choose something else instead

If payload is tight, 64 lbs per battery adds up quickly and a 300Ah lithium bank will weigh a fraction of that. Full-time boondockers who cycle deep frequently will get many more cycles out of lithium before they reach the point where capacity has visibly declined.

There is also a smaller-volume quality-control wrinkle that shows up in reviews on other brands: a few units arrive unable to hold a charge and need to go back. If you buy this battery, test it under load on day one rather than assuming a full reading at the terminal means a healthy battery.

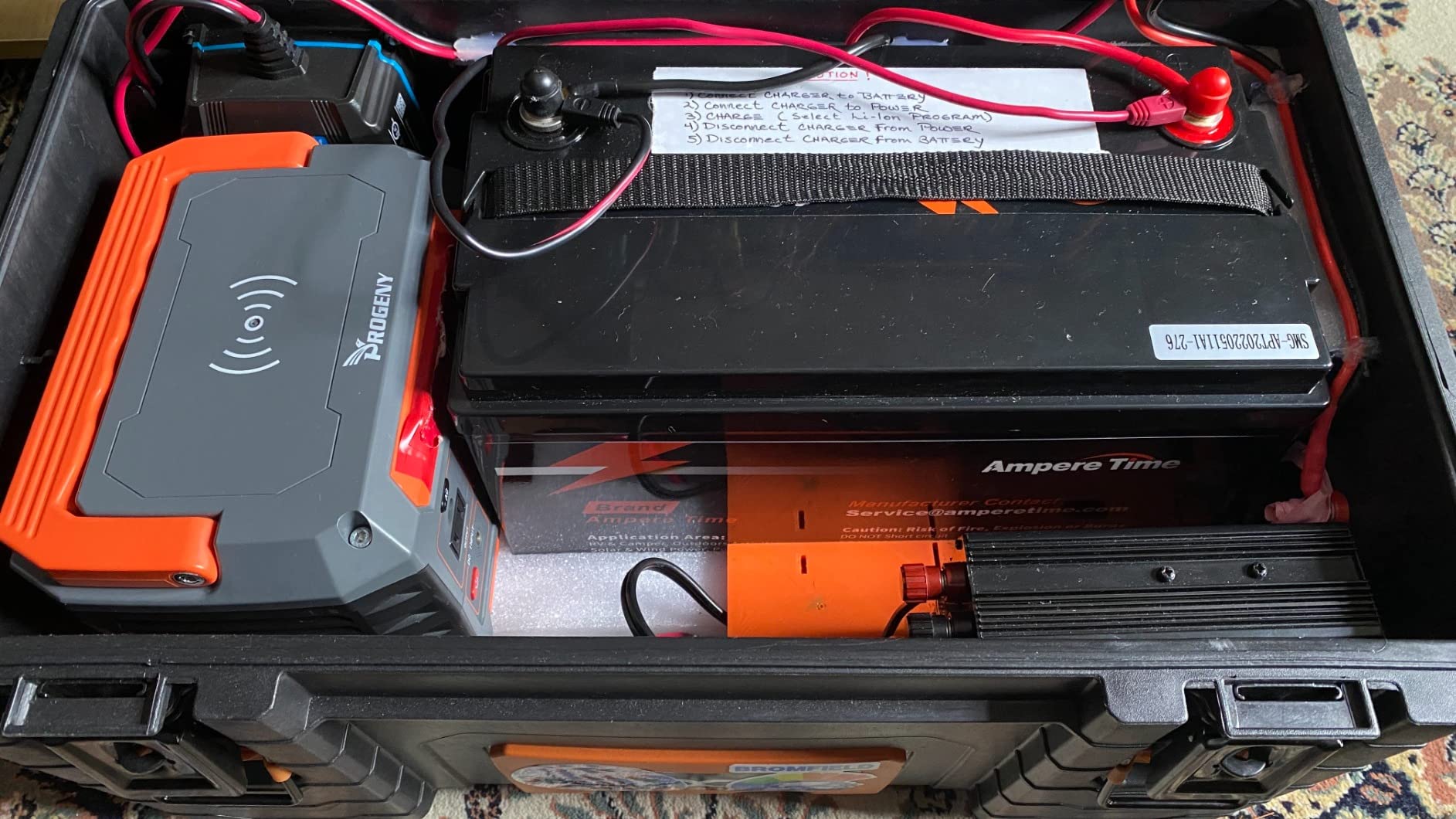

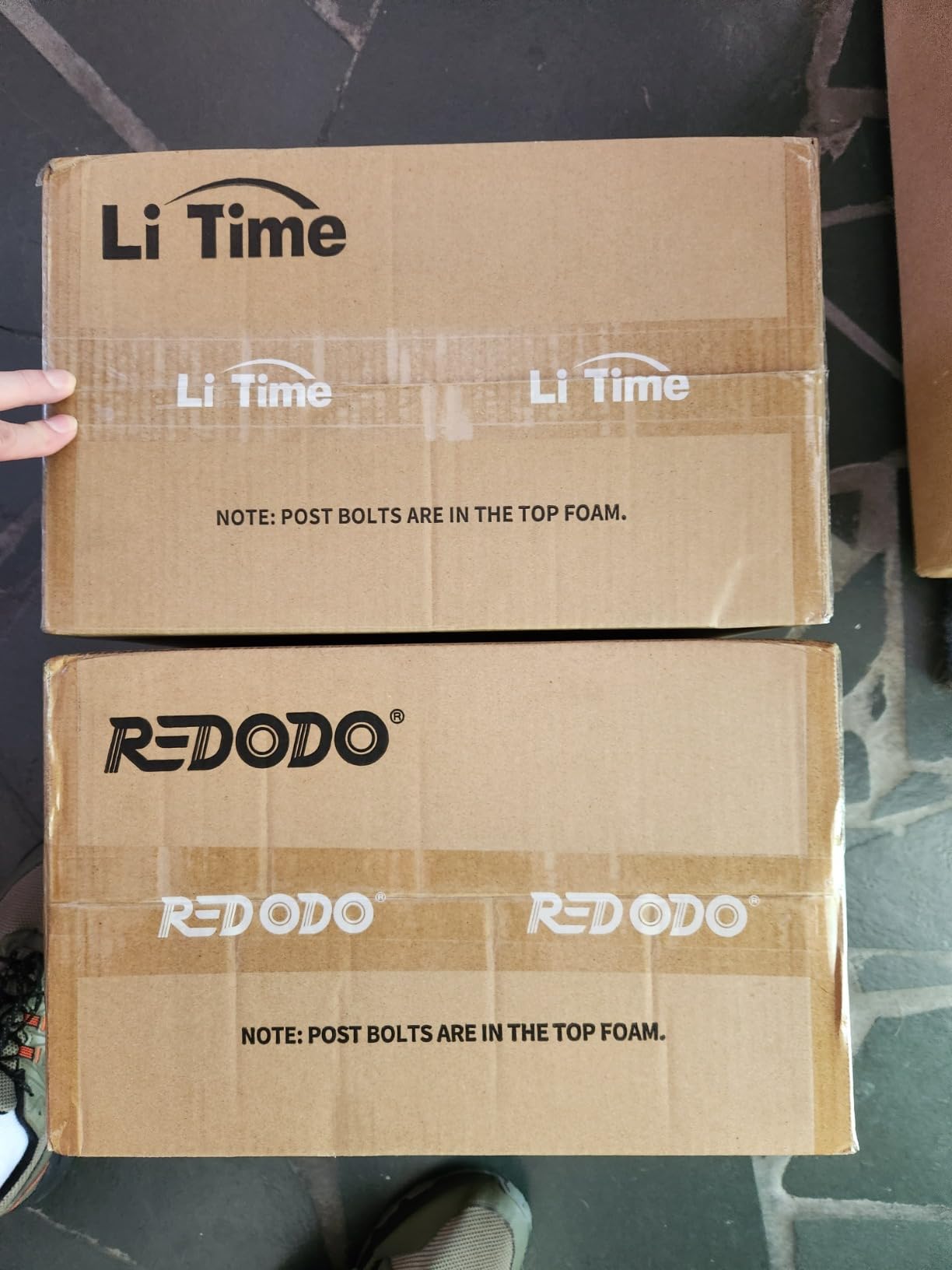

2. LiTime 12V 100Ah Group 31 LiFePO4 – Best for Full-Time Boondocking

A 100 amp-hour LiFePO4 battery stores about 1.28 kWh at its 12.8V nominal, and roughly nine tenths of that is available to you on demand. The equivalent AGM bank gives you about half its nameplate capacity before the voltage gets uncomfortable, which is why lithium changes the sizing conversation rather than just the shopping list.

This particular unit targets the RV, marine and solar storage build directly. The 100A battery management system handles overcharge, over-discharge, short circuit, over-voltage, over-current and over-temperature, and the enclosure carries an IP65 rating so it can sit in a damp battery box or a dusty trailer bay without complaint.

Buyers consistently single out the weight as the reason the purchase feels good. At 22.1 lbs it is roughly one third of the mass of a comparable lead-acid battery, and that difference shows up directly in your payload number on the tow vehicle sticker. On a small trailer, freeing up 85 lbs across a 300Ah bank is the difference between a comfortable tongue weight and a long afternoon of repacking.

Cycle rating is stated as up to 15000 cycles at 60% depth of discharge, with the listing also carrying a 15000-cycle figure at the manufacturer. Read cycle claims carefully, because the same battery number quoted at a shallower discharge looks very different from one quoted at 100%. Marine-style terminals and a Group 31 footprint mean it fits common RV battery boxes without modification.

How to integrate it with an existing system

Before you buy, confirm your inverter/charger has an actual lithium profile. Most modern units do, but if yours has a fixed lead-acid absorb stage you will need a lithium setting enabled, equalization turned off, and the charge voltage set to the 14.4V range. Getting that wrong is the reason RV owners post warnings in Facebook groups about batteries that simply will not charge.

Two of these in parallel give a 200Ah lithium bank at 12.8V, and the listing supports up to 4P4S configuration, so the same unit scales to a 400Ah bank or a 51.2V system if your inverter is set up for higher voltage.

Limits worth knowing before you commit

This basic variant has no Bluetooth and no internal heating, so you will be reading state of charge from a shunt monitor rather than a phone app, and you should not expect it to take a charge below freezing. It is also excluded from engine starting and from certain marine applications without a regulator, which is fine for a house bank but not for a dual-purpose starting setup.

It is the priciest 100Ah unit in this group, and the manufacturer rates it for a 5-year warranty with 24-hour technical support. We think that combination of weight, cycle rating and warranty length justifies the premium for anyone running a full-time rig.

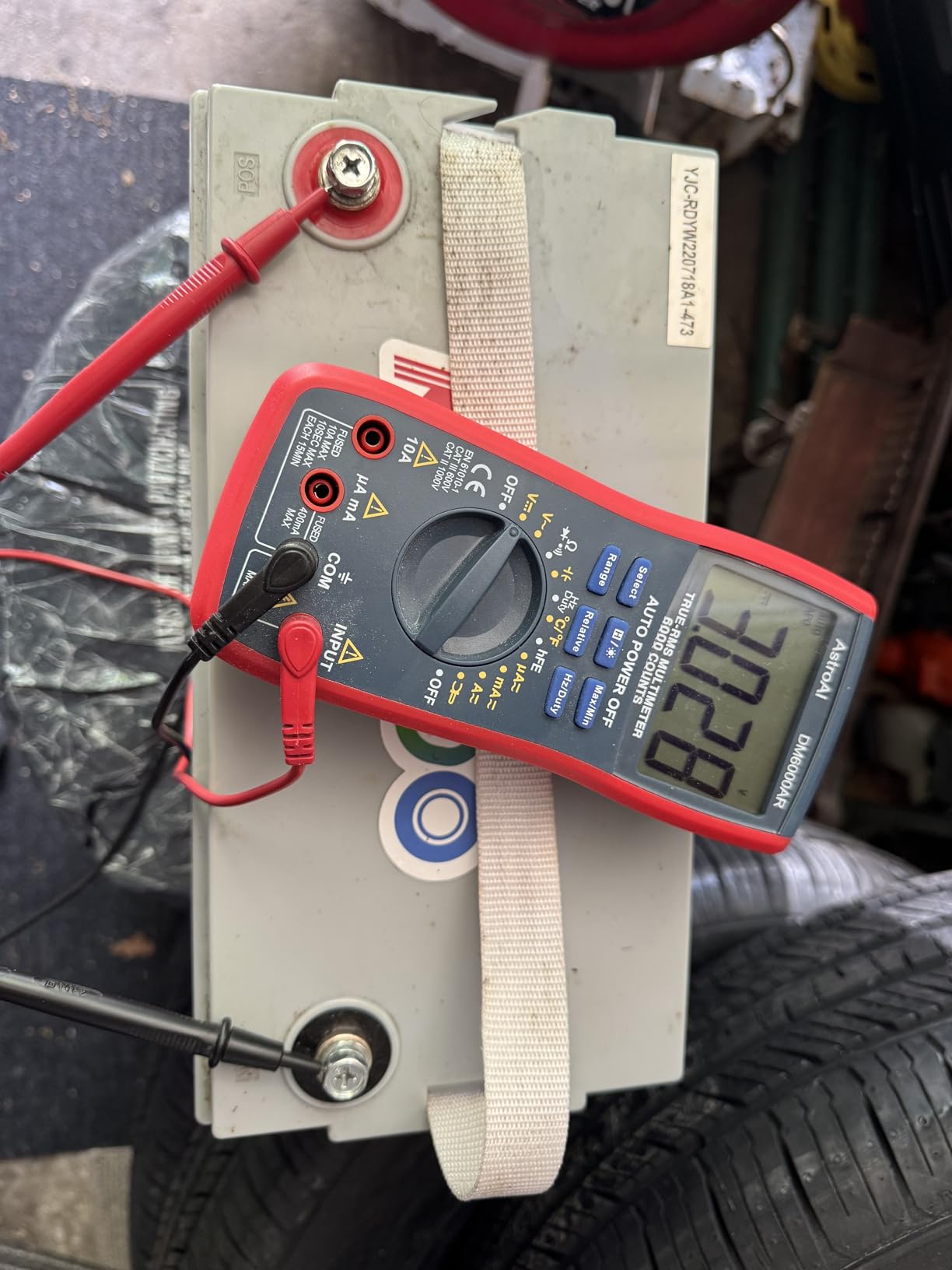

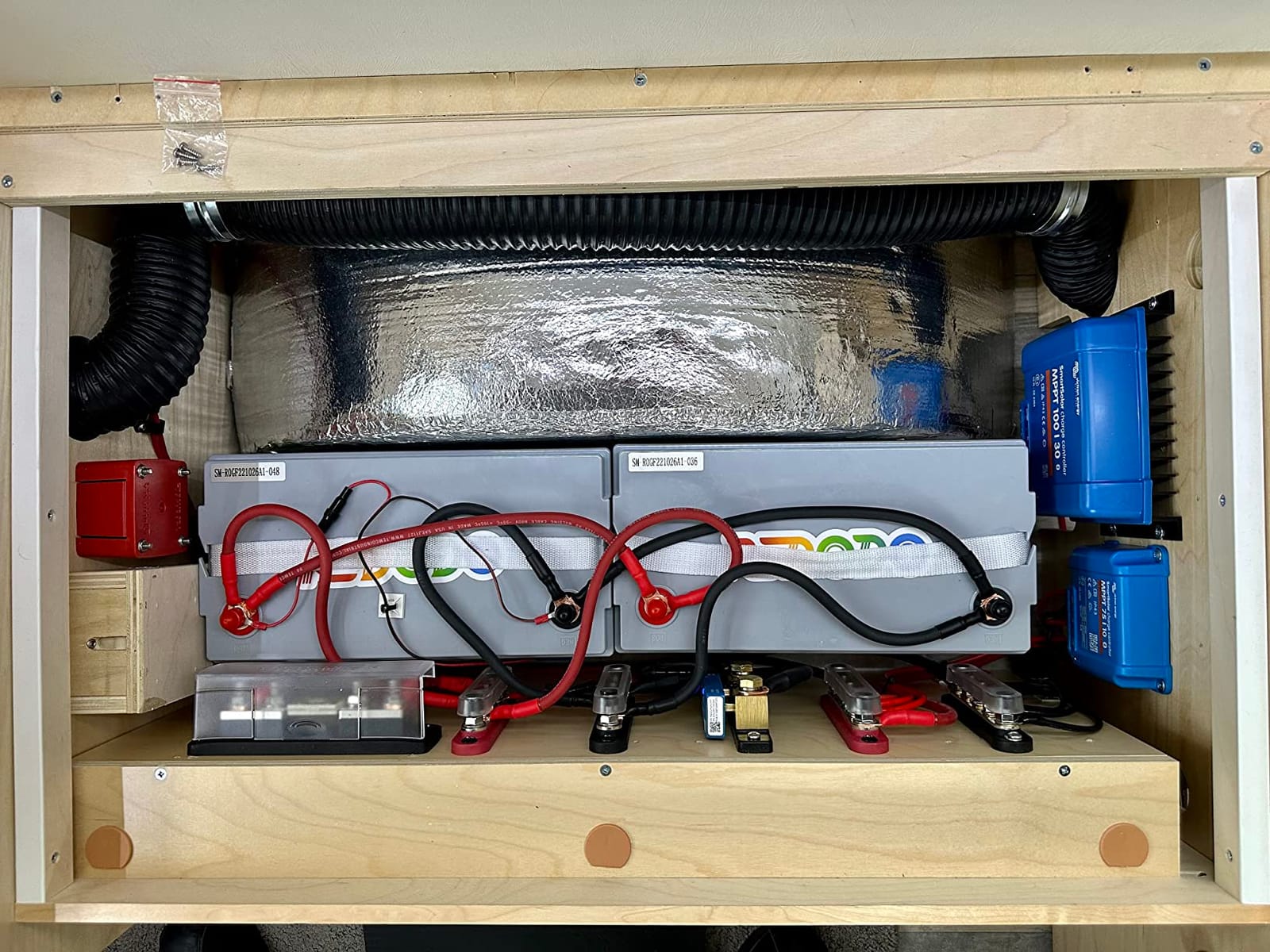

3. Redodo 12V 100Ah LiFePO4 Group 31 – Best for Trolling Motor and Marine Use

The Redodo is a 12.8 volt, 100 amp-hour lithium iron phosphate battery with a 100A BMS, sold in a Group 31 case for RV, boat and solar storage use. Owners mention steady output over multi-day off-grid runs as the thing that impressed them most, along with how quick a response they got from technical support when something needed explaining.

Where this battery separates itself is in how honestly it states cycle life. The spec sheet gives 4000 cycles at 100% depth of discharge, 6000 at 80% and 15000 at 60%. That ladder is the honest way to publish a LiFePO4 cycle rating, and it is the one number you should use when comparing against listings that only quote the flattering 15000 figure.

Energy density is listed at about 58Wh per pound, roughly three times what a comparable lead-acid pack delivers. Two of these in your trailer replace a 200Ah AGM bank and take about 50 lbs off your tongue weight, which on a small trailer can be the difference between needing a weight-distribution hitch and not.

It is also straightforward to expand: 4S4P configuration takes the same unit to 400Ah or a 51.2V system, so one purchase decision can scale as your solar grows. The box includes insulating caps and two sets of M8 terminal bolts, plus a multi-page manual with wiring diagrams that is genuinely useful during install.

Where it fits cleanly

RV owners using a single battery for a 200W to 400W panel array get a genuinely usable bank from one unit, because you can safely take it down to near its full rated capacity rather than stopping at the 50% mark that protects lead-acid.

If you also fish, the maker rates it for trolling motors of 30 to 70 lbs of thrust, and the marine application list covers boats and camping use. That dual RV and marine profile is why it takes our trolling motor slot rather than a generic lithium entry.

Watch the physical fit and the warranty terms

Group 31 is larger than a Group 27 battery box allows, so if your tray is sized for the smaller footprint you will be swapping the box. Measure before you order rather than after.

Owners most often flag that warranty claims come back as a prorated discount rather than a straight replacement, and that a few units needed a BMS reset or swap after several years of storage. The stated warranty is 5 years. It is not a starter battery, and it is not a golf cart battery.

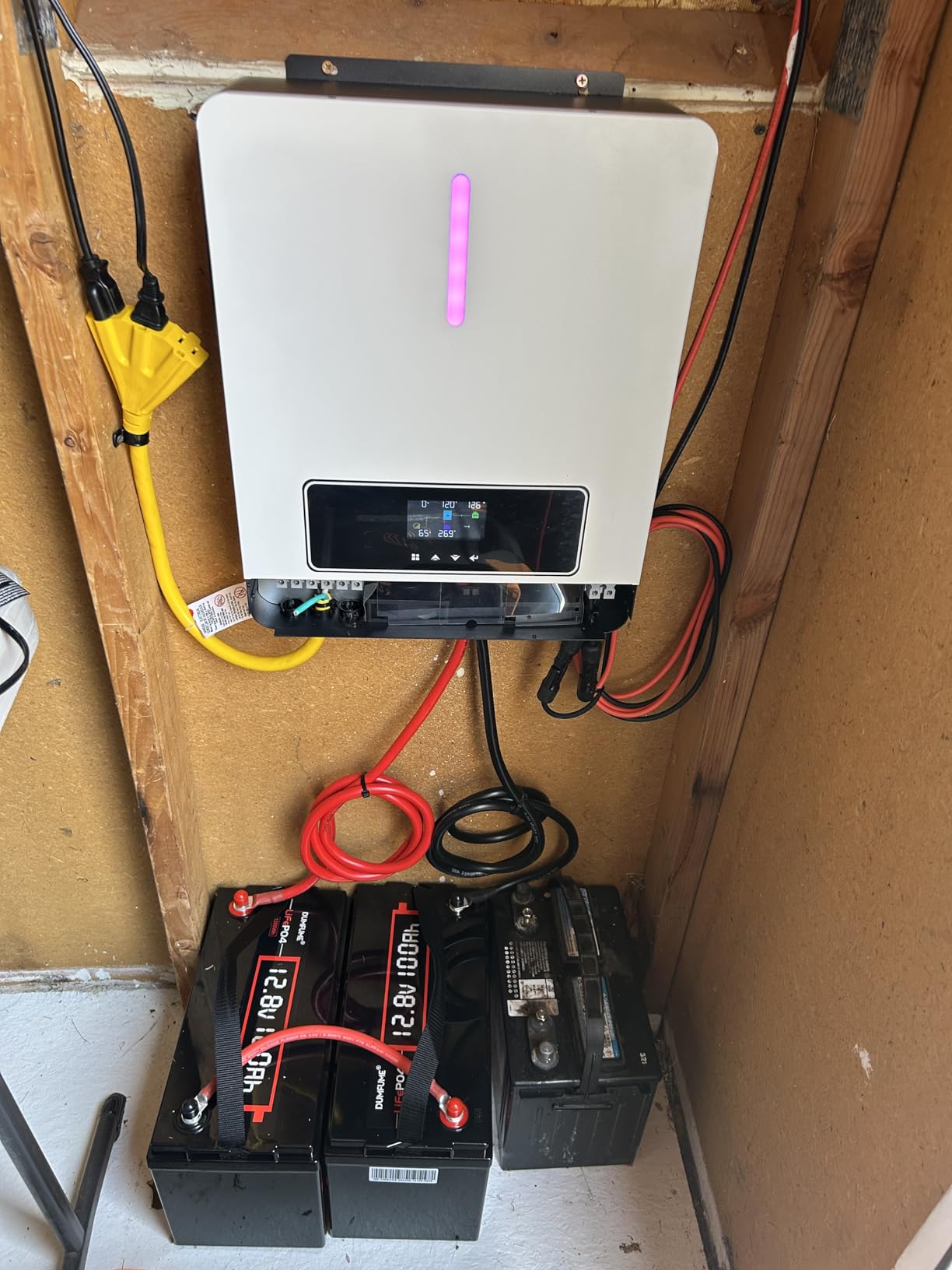

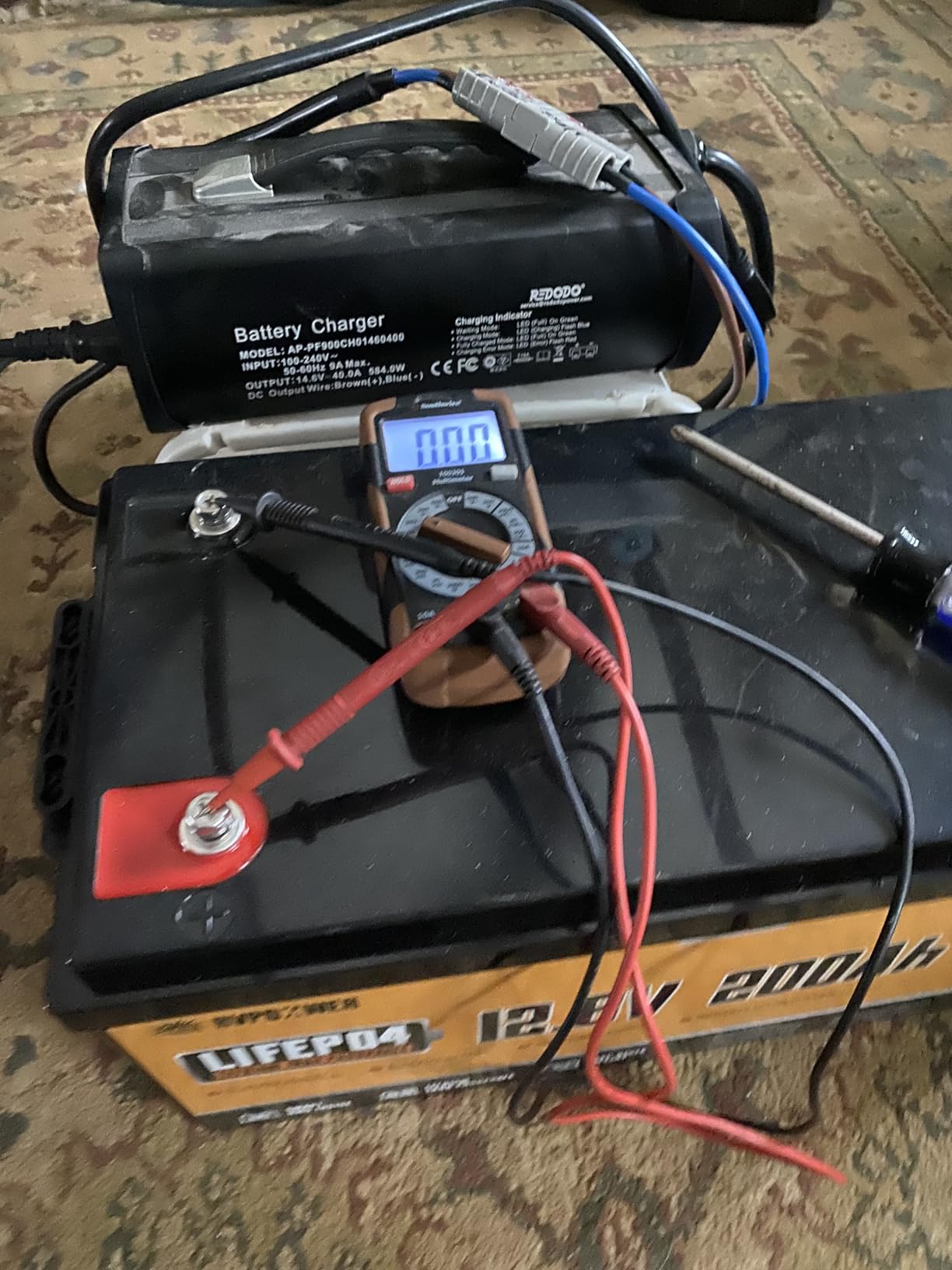

4. dumfume 12V 200Ah LiFePO4 – Best High-Capacity Bank

If your solar is sized for full-time boondocking and you run anything resembling an inverter load, capacity is the constraint. This unit puts 2560Wh into a single 12.8V battery that weighs 58.9 lbs, and the 200A continuous smart BMS has the current headroom to feed a 2000W to 3000W inverter without the bank browning out.

That single-battery approach has a real practical advantage over four separate 100Ah units. One enclosure, one set of terminals, one length of heavy cable run, and far fewer connections to fail. It also cuts the number of places a wiring error can hide.

The enclosure is rated IP65 for dusty outdoor and campsite conditions, and teardown reviews highlight the internal cell assembly and build quality, which is not something you can verify from a listing photo alone. Discharge is rated down to -20C, while charging is disabled below 0C to keep lithium from plating during a cold morning charge.

Cut-offs are published rather than vague: overcharge at 14.6V plus or minus 0.2V, over-discharge at 9.2V plus or minus 0.2V. Published thresholds matter because they tell you exactly what your charge controller and inverter are supposed to be seeing.

Read the break-in requirement carefully

This battery arrives partially charged, and the maker is clear that it must be taken to 14.6V and cell-balanced before first use. Skip that step and the measured capacity disappoints even though the battery is fine. Budget an evening with a proper LiFePO4 charger before you wire it into the trailer.

A small number of reviews also describe units that would not accept a charge until jump-charged in parallel from another battery. It is not the common experience, but it is worth doing your first full charge before the battery is the only power source on board.

Where the tradeoff shows up

At 58.9 lbs this is a two-person lift in a cramped battery bay, and at 21.06 inches long it will not fit where a Group 31 did. Measure the compartment before committing, because unlike the Group 31 lithium units there is no smaller box to fall back to.

A few reviews report a unit failing after about a year of campervan use and inconsistent support responses on warranty complaints. The stated cover is 5 years with 24/7 support, but treat this as the value-and-capacity play rather than the buy-it-for-a-decade play.

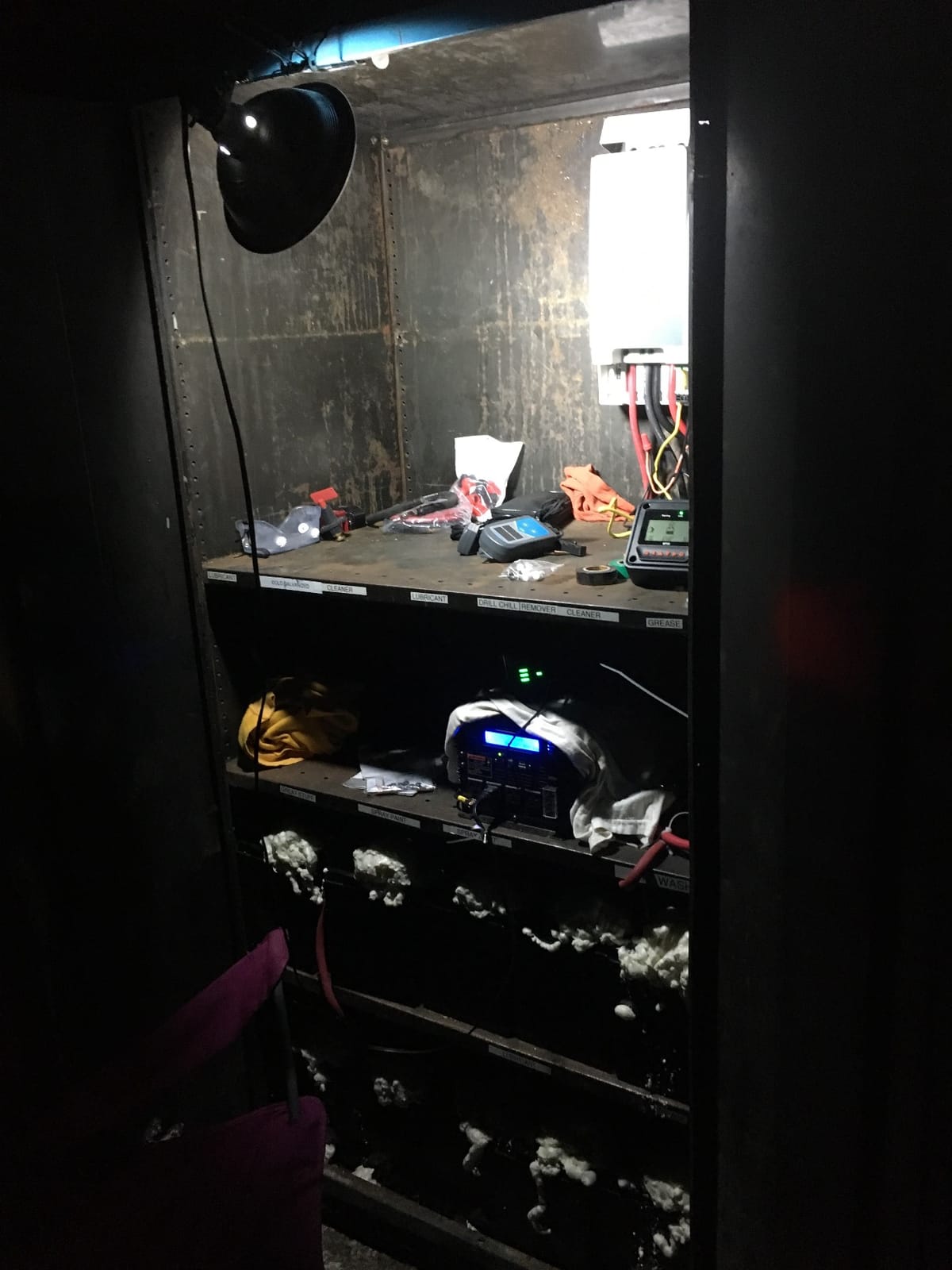

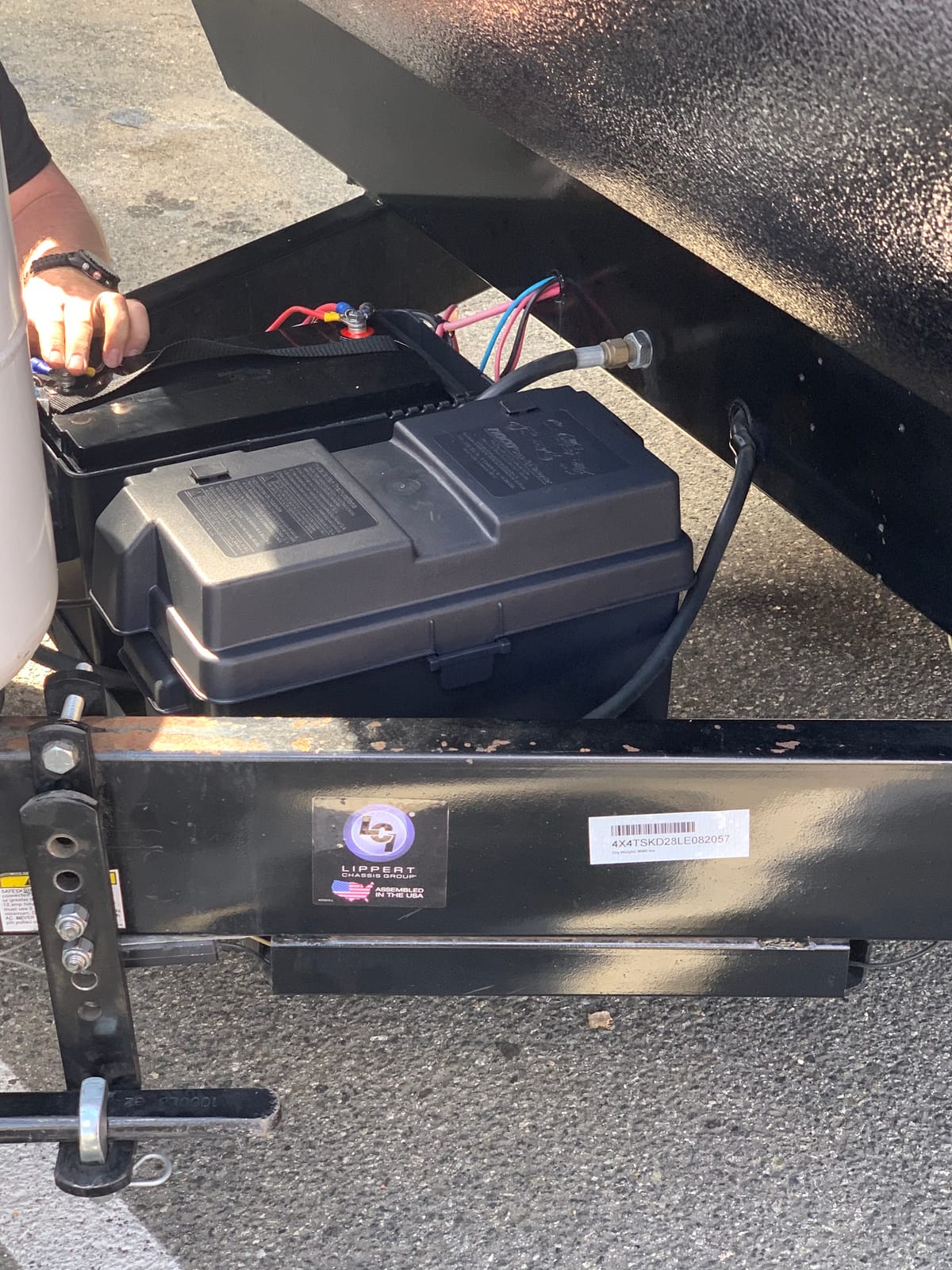

5. WindyNation 100Ah 12V AGM – Best Long-Lived Lead-Acid

Long-term owners of this battery keep posting the same thing: six and seven years of service in vans and campers, still doing the job. That matches the forum consensus that quality deep cycle batteries last seven to ten years when solar keeps them topped up, and it is the reason this is still worth considering in 2026 for anyone who wants to buy one lead-acid battery and forget about it.

It is rated at 100Ah at the 10-hour rate and 110Ah at the 20-hour rate, which is the correct way to publish a lead-acid capacity figure. The higher number at the slower rate is real chemistry rather than marketing, because lead-acid delivers more when you pull it more gently over a longer window.

The build uses heavy-duty plates for deep repetitive discharge and 99.995% pure virgin lead, which is what keeps the self-discharge rate low enough that the battery survives weeks of storage without dropping to a damaging state of charge. On a rig that sits between trips, that low self-discharge matters as much as the cycle rating.

Owners also report it staying cool at around 30C while charging under load. Heat is the quiet killer of AGM banks, and a battery that runs cooler in a sealed trailer bay is one you will get more life from than a hotter-running alternative.

Why it suits a set-and-forget build

It is designed for solar, RV, UPS, marine and telecom duty, so the charging profile is ordinary lead acid and nothing in your inverter needs changing. Available in one through five-pack configurations, it lets you build 100Ah, 200Ah, 300Ah, 400Ah or 500Ah banks without mixing brands or ages, which is the single most important installation rule.

It arrives charged and includes a lifting strap and terminal protectors, which sounds minor until you are lifting 66 lbs out of a floor compartment in the dark.

When to skip it

The weight is the honest drawback. At 66 to 71 lbs it is the heaviest unit here, and installing a pair in a battery tray is genuinely a two-person job. Payload-limited trailers should look at the lithium options before committing.

Voltage also sags noticeably during discharge, which some owners cite as a deal breaker on 24V series builds where sag compounds across the string. And while it will still meet light loads after years, measured capacity does decline with age. If you are willing to lift it and you want proven long-term behaviour, it is a solid choice.

6. Rvpozwer 12V 100Ah LiFePO4 – Budget Pick

If the objective is simply getting lithium weight and chemistry into an RV for the least money per amp-hour, this 100Ah Group 31 LiFePO4 is the one to look at. It carries a 100 amp-hour rating at 12.8 volts, weighs 23 lbs, and costs less per Ah than any other lithium unit in this group.

Protection is handled by a 120A smart BMS covering overcharge, over-discharge, over-current, over-voltage and short circuit. The stated operating range runs from -20C to 65C, which covers everything a temperate or cold-climate rig will throw at it on the discharge side.

A nylon carry handle makes it easier to move than a lead-acid of the same capacity, which partly offsets the saving when you are working in a tight battery compartment. The footprint is Group 31 at 12.99 by 6.77 by 8.46 inches, so it slots into standard RV and marine battery boxes.

It expands to 4S for a 51.2V system or to 400Ah in parallel, meaning one purchase decision can scale into a much larger bank later. Grade-A LiFePO4 cells are specified, and lifetime technical support is offered.

What you give up for the lower cost

The honest drawback is rating variance. At 4.1 average with a 17% one-star share, this battery shows more spread in owner outcomes than the better-reviewed picks in the list. If your build depends on the bank every day, that variance is a real risk rather than a rounding error.

There is also no Bluetooth or app monitoring, so state-of-charge readings come from a shunt monitor rather than your phone. On an RV solar setup that is workable, just less convenient.

Who it suits

This is the pick for a weekend camper or a first lithium conversion where you want the weight saving without a premium. It suits a rig whose solar harvest is modest, and a builder who is comfortable testing the battery under load after install rather than assuming it is good.

Because it carries a 5-year warranty description and lifetime technical support, it is not a disposable purchase. Treat it as the budget entry into lithium rather than the safest long-term bet.

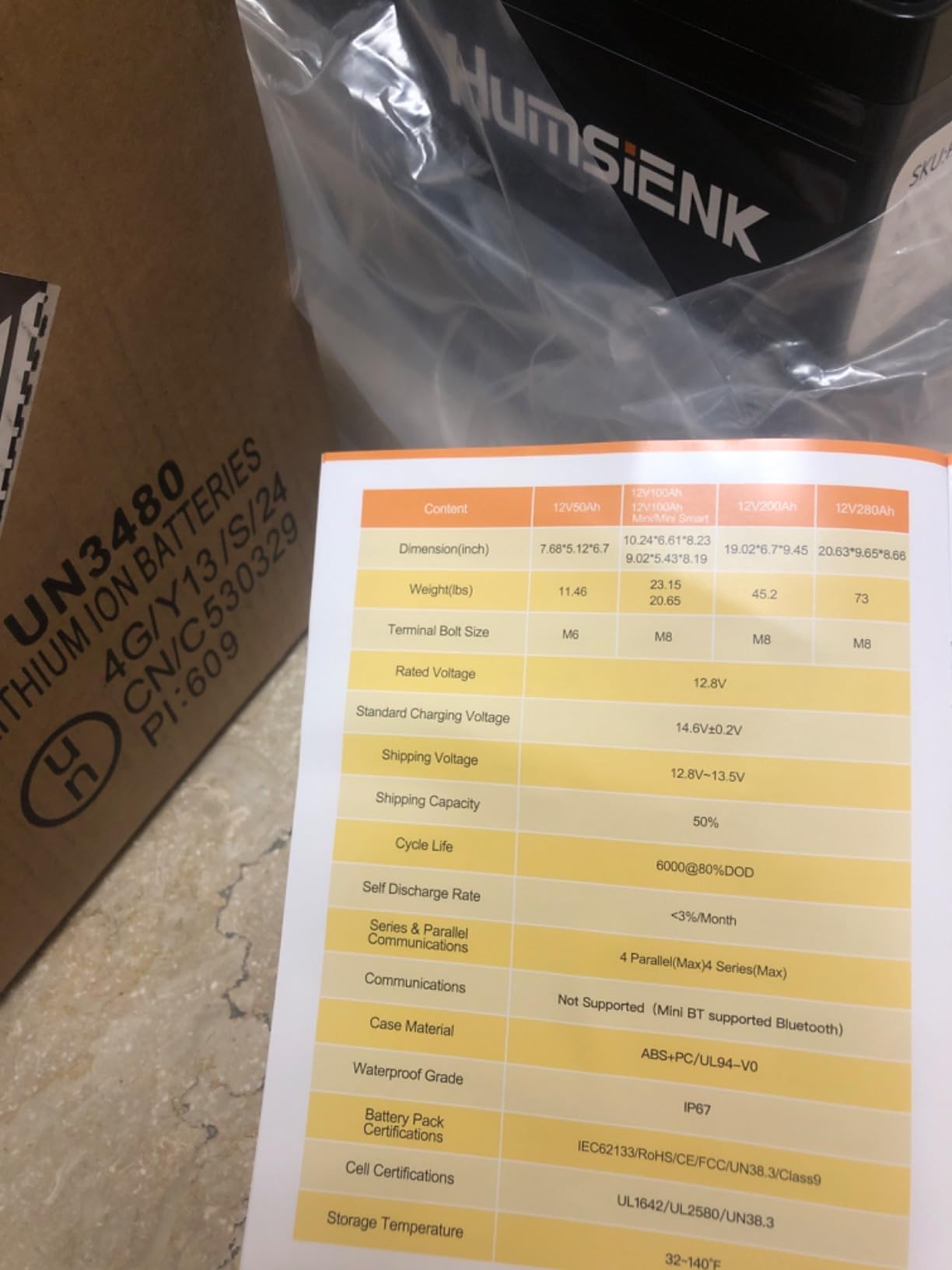

7. HumsiENK 12V 100Ah LiFePO4 with Bluetooth – Best for App Monitoring

State of charge is the number RV owners most want and lead-acid gives them least reliably, because resting voltage stops telling the truth under load. This battery solves that with an integrated Bluetooth BMS app that reports live voltage and temperature, which is why it takes the monitoring slot.

It is a 12V 100Ah lithium iron phosphate unit rated at 1280Wh, and at roughly 19.7 lbs it is one of the lighter batteries here regardless of chemistry. Owners report it fitting BCI Group 24-31 battery boxes, which is a useful bit of slack if your tray is not precisely Group 31.

Cold-weather handling is specified from -4F to 158F with low-temperature shutdown protection, so the battery protects itself rather than relying on you to remember the cutoff rule. It carries an IP65 rating, is UL tested and holds FCC and CE certification, which matters more than it sounds if you are importing or replacing under warranty.

Energy density is claimed at three to five times lead-acid in a package that is 35% smaller and more than 60% lighter. Configuration scales through 4S4P up to 48V and 20.48kWh, and it is offered in one, two, three and four packs.

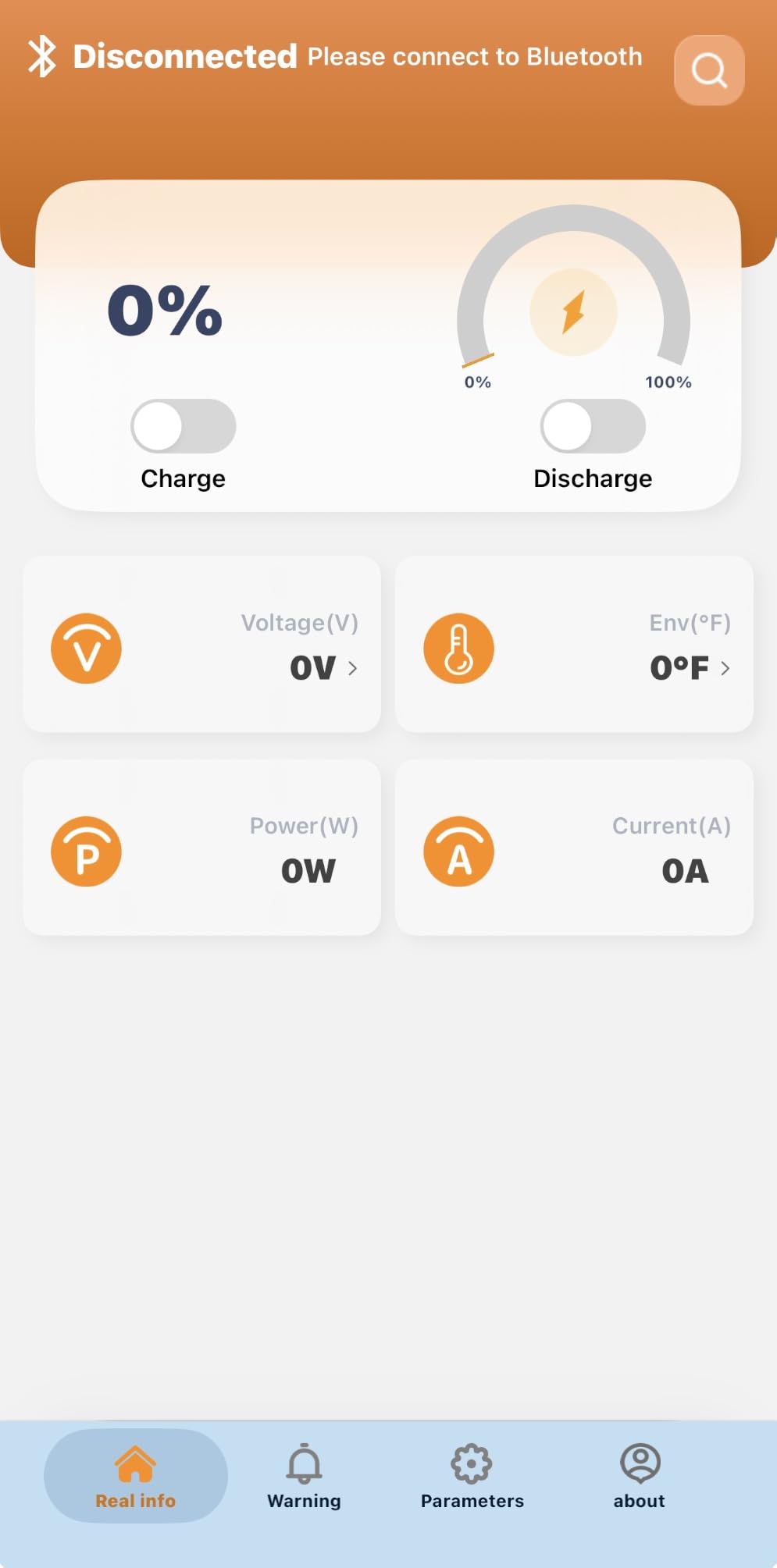

What the app actually gives you

Real-time voltage and cell temperature are the headline features, and for an RV solar build they answer the question you cannot answer while parked: is the bank accepting charge, and how hard is it working right now. It also makes diagnosing a poor charge controller much faster, because you can watch current in and out.

The box includes insulating caps and both 14mm and 16mm M8 screws, so it will fit most terminal hardware without a second trip to the parts bin.

Limits to keep in mind

Bluetooth monitoring depends on a compatible phone app, so check that before you commit. It is also a smaller-volume listing with less long-term owner history than the established brands, which is normal at this stage and worth weighing if you plan to keep the rig for a decade.

Like every lithium option here, it is not engineered for engine starting. The stated manufacturer warranty is 5 years.

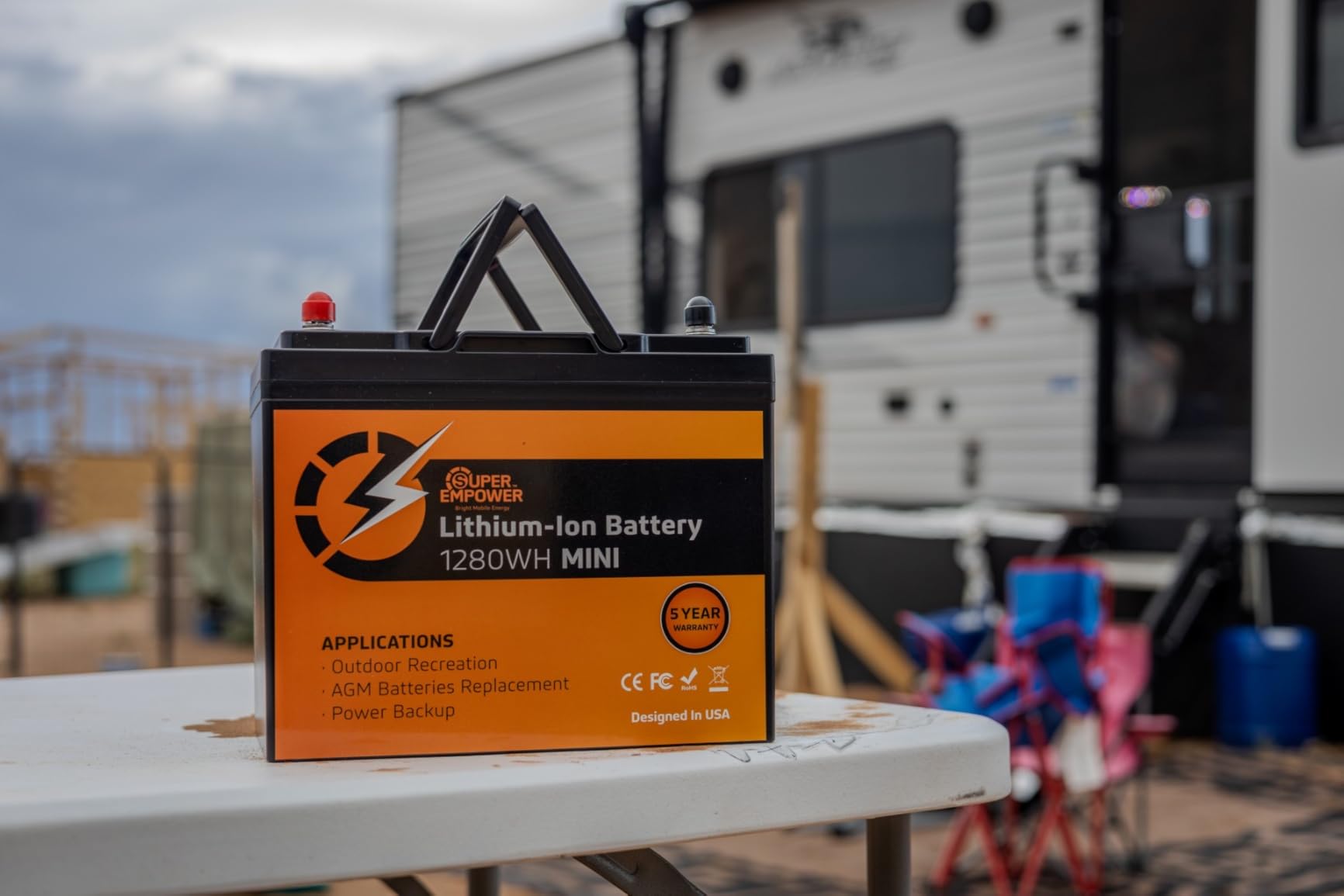

8. SUPER EMPOWER 12V 100Ah Group 24 – Best for Tight Battery Boxes

At 4.6 stars this carries the highest average owner rating of any unit in the group, and the reason is physical. Measuring 6.49 by 10.24 by 8.98 inches, it is a compact Group 24 drop-in, so it fits battery compartments that a full-size Group 31 lithium battery will not.

Internal resistance of 40 milliohms is genuinely low for a 100Ah lithium pack, and it is the spec that shows up under hard load. Low resistance means less voltage drop when an inverter asks for a big burst, which is exactly where cheaper cells start to sag.

Four M8 cells with a Grade A build and an integrated 100A BMS handle cell balancing and multi-battery operation, so you can scale the same unit through 4S4P to a 51.2V 400Ah configuration. Terminal type is M8, which is the more common modern hardware and is easy to find replacements for.

The charging guidance is unusually clear for a product at this level: 14.4V to 14.6V LiFePO4 charger, an MPPT or PWM controller set to lithium mode, or a generator through a DC-DC charger. Knowing the required profile before install saves the most common RV troubleshooting headache.

Where the small footprint pays off

Travel trailer battery trays are frequently sized for a Group 24 and nothing larger. This battery gives you 1280Wh of lithium capacity inside that envelope, which on a weight-sensitive trailer is the single most useful spec on the sheet. Owners highlight clean drop-in installation for RV house banks as the deciding factor.

It is also rated for boat use, so a rig that doubles as a fishing platform can use one battery for both jobs without a separate starting bank.

Standard lithium caveats apply

The BMS disables charging below 32F, so this is a battery for rigs that store indoors over winter or camp in mild conditions, not for sub-freezing boondocking without a heated option. Non-lithium chargers are not recommended, and it is for energy storage use only rather than cranking.

The listing states no included accessories, so plan on supplying your own terminal hardware. Support response is stated within 24 hours and the warranty is 5 years.

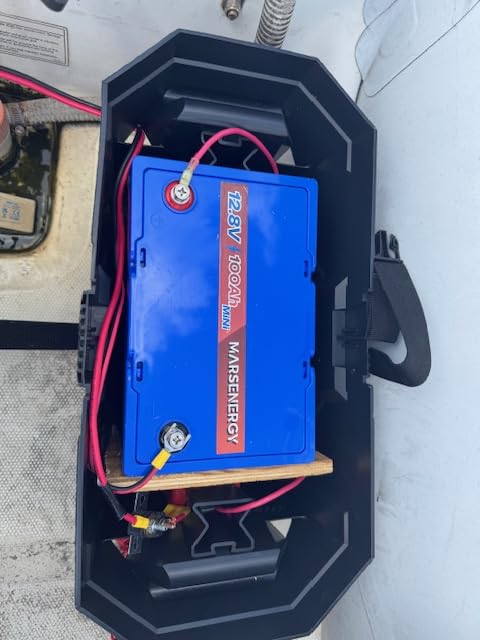

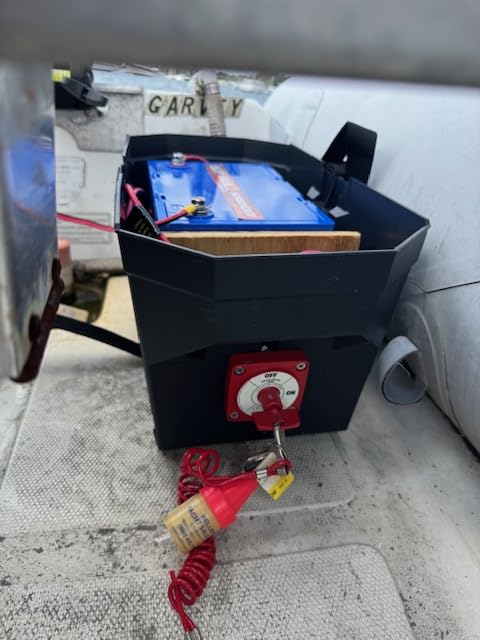

9. MARSENERGY 12V 100Ah BCI Group 24 – Most Versatile

This is the highest-rated battery in the group at 4.8 out of 5 stars, with 88% of owners giving it five. It is a 12.8V 100Ah lithium iron phosphate unit weighing 21 lbs, and the BCI Group 24 footprint is the practical headline: it drops into Group 24, Group 27 and Group 31 boxes without modification.

That fit flexibility is not a small detail on an RV. Battery trays get mislabeled constantly, and a case that works across three group sizes removes the single most common reason a battery ends up on a porch.

Cycle life is published as 4500 cycles at 100% depth of discharge, 8000 at 80% and 15000 at 60%. Publishing the 100% figure at all is unusual and useful, because that is the number you hit in a real deep-discharge RV weekend. The cells also carry low-temperature additives for better cold-weather resistance, with a discharge cut-off at -4F and charging cut-off at 32F.

Owner feedback repeatedly points at weight and usable capacity as the reasons it earns the rating, along with fast, responsive service that resolves issues by text and instant message.

Best fit for an RV battery tray

If your tray is Group 24, Group 27 or Group 31 and you want lithium weight savings without swapping the box, this is the simplest install in the group. At 21 lbs it is roughly two thirds lighter than the equivalent lead-acid unit, so a 200Ah pair frees up meaningful payload.

Enclosure is fully waterproof, and A-grade cells sit behind a multi-function BMS. Bluetooth variants allow state-of-charge monitoring through an app if you want visibility on the bank.

Mechanical caveats to plan around

The terminals are raised rather than recessed, which means you cannot stack four units in a single box. Plan a longer tray or a second compartment if you want to reach a 400Ah bank.

Batteries should receive a full charge and load balance before installation, and terminal blocks are recommended over joining batteries directly at the posts. Bluetooth versions offer state-of-charge monitoring only, with no adjustable settings. After-sales service is stated at 5 years, with a vendor-tested lifespan of 10 years.

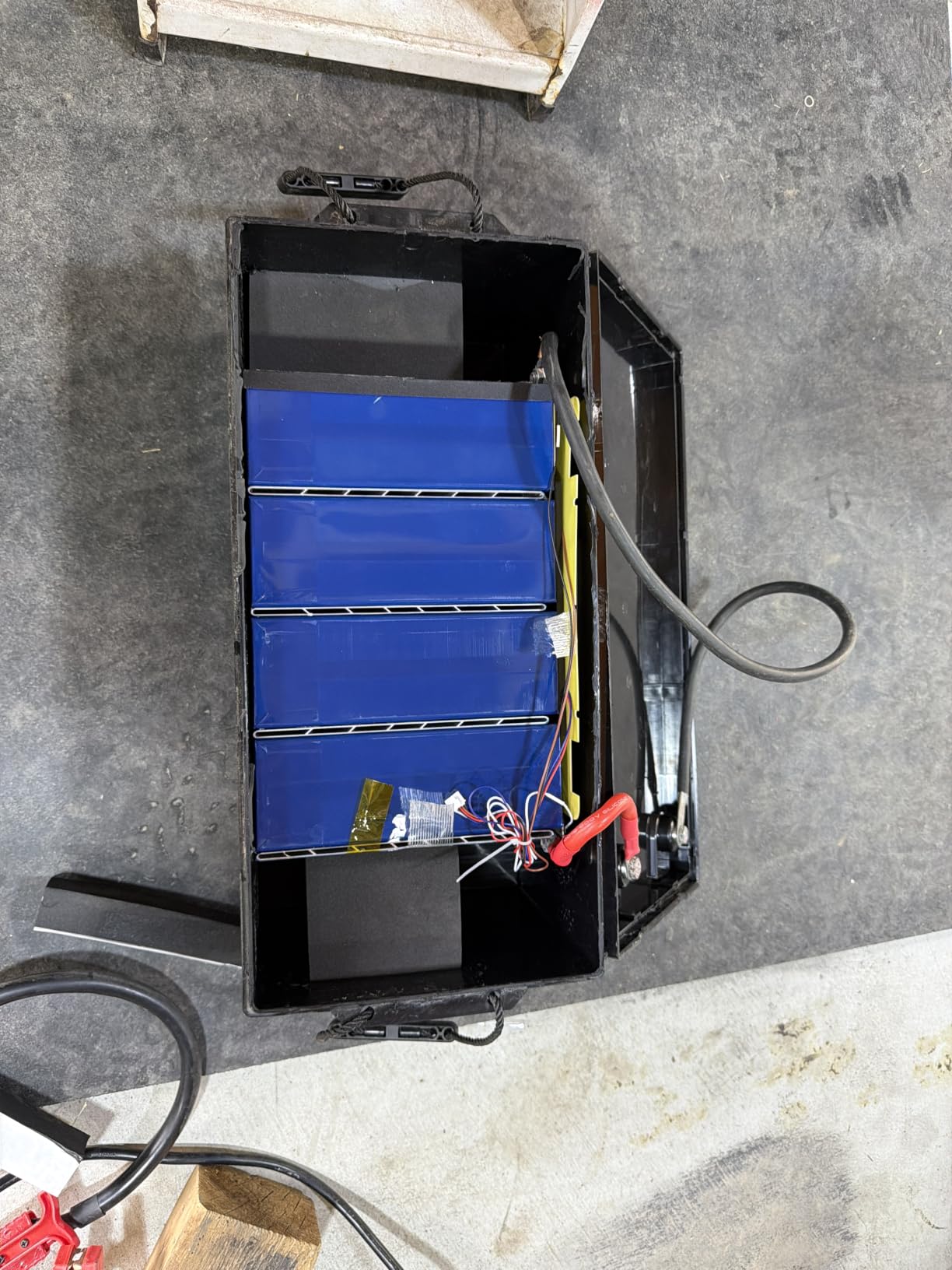

10. VEMDIA 12V 100Ah Group 31 – Best Entry Group 31 Lithium

The last pick is the most straightforward budget conversion in the group: a 12.8V 100Ah Group 31 LiFePO4 battery at 24 lbs, with exact Group 31 dimensions so no box modification is needed. That is the cleanest possible swap from a lead-acid bank of the same size.

The 100A smart BMS provides overcharge, over-discharge, over-current and short circuit protection, and it applies an automatic charging cut-off below 32F. Discharge operation is rated from -4F to 140F, so cold weather affects charging rather than output, which is the correct behaviour for lithium chemistry.

LiFePO4 chemistry removes the acid maintenance and thermal runaway risk associated with lead-acid, and owners like the fast charge: roughly five hours on a 14.6V 20A LiFePO4 charger, which is a full recovery over a single sunny afternoon. Support is US-based with a 24-hour response guarantee, and the box includes a manual, insulating caps and M8 terminal bolts.

Cycle ratings are given as 15000 plus cycles at 60% depth of discharge and 8000 plus at 80%, with 4S4P expansion up to 51.2V and 400Ah, and a stated 10-year service life claim.

Why it still makes the list

Exact Group 31 drop-in geometry is worth paying attention to if you are replacing a lead-acid bank and want zero fabrication. At 24 lbs it is about 70% lighter than the lead-acid equivalent, and the compatibility list covers RV, solar energy storage, marine starting and trolling motor use.

It is the pick for someone who has decided on lithium, wants the standard footprint, and would rather put the remaining budget into more solar panels.

Where it falls short

Internal resistance is listed at 120 milliohms, three times the figure on the compact Group 24 option. Under a sustained high draw that shows up as more voltage sag, so it is less ideal for a heavy inverter load than some rivals here.

The warranty is 2 years, the shortest in this group, and a 12% one-star share indicates more variability than the top-rated picks. The listing also quotes both 6000 cycles at 100% depth of discharge and 8000 at 80%, which is inconsistent with typical LiFePO4 ratings. Read those claims cautiously and judge the battery on its warranty term.

How to Choose a Deep Cycle Battery for RV Solar

LiFePO4 vs AGM vs flooded lead acid: which chemistry fits your rig

LiFePO4, AGM and flooded lead acid all store energy the same way and differ mostly in how much of it you are allowed to use and how many times you can use it. A 100Ah LiFePO4 battery gives you roughly 1.28 kWh and tolerates about 90% depth of discharge. The same 100Ah AGM gives you about 0.6 kWh usable before the voltage gets uncomfortable.

That usable-capacity gap is the whole argument for lithium, and it is also why cycle counts differ so wildly between brands. AGM is generally quoted around 500 cycles at 50% depth of discharge, while LiFePO4 listings range from 4000 at full depth to 15000 at 60%. Only compare figures quoted at the same depth of discharge, or the comparison is meaningless.

Flooded lead acid, where it still makes sense, needs watering, ventilation and a battery box that handles off-gassing. Gel is a sealed cousin of flooded with better charge tolerance and a lower charge rate ceiling. AGM sits between them, needing no water but still lead-acid chemistry and its 50% practical discharge limit.

How to size your battery bank in amp-hours

Start by listing what you actually run and for how long. Add up the watts of each item, multiply by hours per day, divide by 12 for DC loads to get amp-hours. Then divide that daily figure by 0.5 for lead-acid or 0.9 for lithium to get the bank capacity you need.

A worked example: a 60W fridge running 8 hours is about 40Ah a day. Add a 10W pump for half an hour, some lights and a fan for four hours, and you land near 80Ah daily. For a lead-acid bank that means roughly 160Ah, and for lithium about 90Ah. Most weekend campers land comfortably with two 100Ah batteries of either chemistry.

Rounding up to the next standard size is normal. Sizing exactly to the calculated number leaves no reserve for cloudy days, and undersizing is the more common and more expensive mistake in RV solar.

How much solar you need to recharge the bank

The rule of thumb that circulates on r/SolarDIY and matches our own experience is about 600W of solar per 200Ah of lithium bank. So 100Ah wants roughly 300W, 200Ah wants 600W, 300Ah wants 900W, and a 400Ah bank wants 1200W.

Solar is usually the limiting factor in an RV system, not the battery. Under-collected energy means the bank never reaches full charge, which is the main reason AGM batteries on solar fail early. If your array is undersized, no chemistry change rescues it. For more on the array side, see our portable solar panel picks for RV camping.

Cold-weather charging and self-heating batteries

LiFePO4 stops accepting charge below roughly 32F, and that is chemistry, not a defect. Most lithium batteries in this group handle it with an automatic low-temperature charging cut-off, which protects the cells from lithium plating but leaves you without charging capacity for a cold stretch.

If you camp below freezing, treat that limitation as a planning problem. Store the battery indoors overnight, run it off shore power when available, or choose a heated lithium battery that draws its own power to keep cells above the cutoff threshold. Discharging still works in the cold on all the lithium options here, down to -4F or -20C depending on the model.

Lead-acid sidesteps the charging cutoff but pays for it elsewhere. A cold AGM bank charges slowly and accepts less total energy, so on short winter days you can end up chronically undercharged, which is exactly the condition that causes sulfation.

Charge controller and inverter charger compatibility

This is the most common post-purchase failure in RV lithium installs, and it has nothing to do with the battery. Most failures trace back to a charger with no lithium profile or a fixed lead-acid absorb stage that the battery will not accept. If your controller or inverter charger cannot be set for lithium, the bank will simply never come up to a full charge.

The sequence that fixes it: confirm a lithium profile exists in the charger menu, enable it, disable equalization, and confirm charge voltage in the 14.4V range with float around 13.6V. On the solar side, make sure your MPPT controller has a lithium setting and that its absorption voltage is not stuck on a lead-acid schedule. A shunt-based battery monitor on the bank will confirm within a day whether charge is actually landing.

What kills AGM batteries

Sulfation from prolonged low state of charge is the main cause. Lead sulfate builds on the plates whenever a battery sits below a full charge, and it hardens into crystals that reduce the capacity you can get back out. Chronic undercharging from too little solar is the usual cause, which is why solar-equipped AGM banks outlast shore-power-only ones.

Roughly 50% is the working discharge limit for AGM. Running regularly below that point stresses the plates and shortens life. Heat is the second killer, so keep the bank away from an engine compartment or a solar controller that runs hot. Deep cycling without rest causes plate growth, and unlike lithium there is no partial recharge tolerance, so a bank stored discharged between trips will not recover.

For comparison, if you also use the same battery on the water, our marine deep cycle battery guide covers the discharge rates those applications demand.

Installation rules: series, parallel and never mixing chemistries

Series wiring raises voltage and keeps amp-hours the same, so two 6V batteries in series give 12V at the same Ah. Parallel wiring holds voltage steady and adds capacity, so two 12V 100Ah batteries in parallel give 200Ah. Most RV house banks are parallel, because that is how you add capacity without moving to a 24V or 48V inverter.

Never mix chemistries in one parallel bank, and never mix battery ages. A new lithium battery paralleled with old AGM cells will equalise at the slowest cell in the string, which wastes the new battery and stresses the old one. Either replace the whole bank at once or keep new and old units physically separate.

Use the same model and age of battery across a parallel string, keep cable runs equal length so each battery carries the same current, and use terminal blocks rather than stacking connections directly on the posts. Ventilate a flooded lead acid box, and secure lithium banks so a hard stop cannot throw them around the compartment.

Frequently Asked Questions

Final Verdict: The Deep Cycle Batteries for RV Solar Worth Buying

Our editor’s choice is the Renogy 12V 100Ah AGM, because it is the pick that works on the rig you already own, drops into a Group 24 tray and needs no charger changes. If you are building or rebuilding, choose the LiTime 12V 100Ah Group 31 LiFePO4, which cuts weight by roughly two thirds and multiplies usable capacity per battery.

For tighter trays the compact Group 24 lithium options fit, for monitoring the HumsiENK Bluetooth unit shows live state of charge, and for capacity in a single box the 200Ah lithium bank removes the wiring complexity. Lead-acid loyalists are best served by the WindyNation unit for proven long-term behaviour.

Whichever you choose, size the bank from your daily amp-hour draw, collect roughly 600W of solar per 200Ah of lithium, and confirm your charger has a lithium profile before the install. Those three steps decide whether any of these best deep cycle batteries for RV solar actually deliver the life the spec sheet promises.
