The best air compressor for painting a full car is a 60-to-80-gallon, two-stage piston compressor delivering at least 11 to 15 CFM at 90 PSI. That single sentence is the answer to the question, and almost every mistake I see in home paint jobs traces back to ignoring it.
Most people shopping this category are sorting by the number on the box: gallons, PSI, horsepower. None of those three numbers tell you whether the compressor can hold a spray pattern steady across a hood. CFM at 90 PSI does. Tank size is a buffer that governs how long you can spray before the pump cycles, not how hard it can deliver air while you do.
This roundup covers ten compressors that come up constantly in paint-shop conversations, sorted honestly rather than by marketing. I did not run any of these in a spray booth. Every figure below comes from published manufacturer specifications, and every owner note comes from aggregated review feedback, so you can check both against the spec sheet yourself. If you want the broader tool picture first, we have guides to air compressors for pneumatic tools and portable compressors for overlanders.
Here are the three specifications that decide everything else:
Tank size: 60 gallons for a full vehicle, 20 to 30 gallons for panel-at-a-time work, 3 to 10 gallons for touch-up and airbrush.
CFM at 90 PSI: 11 to 15 or more for a full car with an HVLP gun. Ignore any airflow figure quoted at 40 PSI.
Compressor type: two-stage piston for painting. Single-stage delivers roughly 1 CFM per horsepower against roughly 4 CFM per horsepower for two-stage.
Table of Contents
Which Compressor Do You Actually Need?
The question behind the question is almost always scope. Someone on r/AutoPaint asked for the smallest compressor that could spray one panel at a time, and the honest answer is that panel-by-panel work is a real workflow, not a compromise.
Full car respray in one session: 60 to 80 gallons, two-stage, 11 to 15+ CFM at 90 PSI, on a dedicated 240V circuit. Nothing less holds pressure from front bumper to rear quarter.
One panel at a time, garage project: 20 to 30 gallons on a standard outlet. You spray a door, release the trigger, and let the tank recover while you move to the next.
Touch-up, pinstriping, airbrush graphics: 3 to 6 gallons, ideally with a moisture trap. Airbrush compressors are an addition to a setup, never a replacement for one.
Metal media blasting: Plan on a separate machine. Compressors sized for paint are routinely undersized for blasting.
Being honest about this roundup up front: none of the ten compressors below reaches 11 to 15 CFM at 90 PSI. The closest is the first one. What the rest of the list does well is cover panels, touch-ups, trim, and clear coat, which is where most home projects actually live.
Top 3 Picks for Painting Cars in 2026
Campbell Hausfeld 60-Gallon 2-Stage
- 60-gallon ASME tank
- Two-stage cast iron pump
- 7.6 CFM at 90 PSI
- 230V induction motor
California Air Tools 10020C
- 5.3 CFM at 90 PSI
- 10-gallon steel tank
- 70 dB
- Oil-free dual piston
Best Air Compressors for Painting Cars in 2026
All ten in one place, with the figures that matter for paint work. Airflow is quoted at 90 PSI wherever the manufacturer publishes it.
| Product | Specifications | Action |
|---|---|---|
| Campbell Hausfeld 60-Gallon 2-Stage |
|
Check Latest Price |
 Klutch 29-Gallon Vertical |
|
Check Latest Price |
 Stealth 20-Gallon Ultra Quiet |
|
Check Latest Price |
| California Air Tools 10020C |
|
Check Latest Price |
 Makita MAC320Q |
|
Check Latest Price |
 DEWALT D55146 |
|
Check Latest Price |
 VEVOR 15-Gallon |
|
Check Latest Price |
 Metabo HPT EC914S |
|
Check Latest Price |
 ECOMAX 6-Gallon Kit |
|
Check Latest Price |
 VEVOR 13-Gallon |
|
Check Latest Price |
1. Campbell Hausfeld 60-Gallon 2-Stage: The Only True Full-Car Pick Here
Campbell Hausfeld 60-Gallon 2-Stage Air Compressor, 175 PSI, 230V
60 gal ASME vertical tank
Two-stage cast iron pump
7.6 CFM at 90 PSI
230V, 3.7 running HP
65 dB, 255 lbs
Pros
- Only two-stage pump in this lineup
- 60-gallon ASME tank holds a lot of reserve air
- Cast iron pump rated up to 10000 hours
- Vertical tank saves floor space
- 3-year limited warranty
Cons
- Needs a dedicated 230V circuit
- 255 lbs and not portable
- Oil-lubricated so it needs regular servicing
- Modest review count for a shop unit
Model XC602100.COM is the closest thing in this list to the spec threshold the AI Overview and the forums both describe. Sixty gallons vertical ASME, a two-stage oil-lubricated cast iron pump, and a 230V induction motor rated at 3.7 running HP.
Published airflow is 7.6 CFM at 90 PSI and 6.9 CFM at 175 PSI. That sits below the 11 to 15 CFM ideal for a full-car session, which means a careful painter on this machine still works panel by panel with recovery time between passes.
The B-10 bearing rating behind the 10,000-hour pump life claim is the number that matters for longevity. Two-stage cast iron with proper oil changes outlives most oil-free pumps in this price class, and the pump is serviceable rather than sealed.
Reviewers report satisfaction with the tank capacity and the vertical footprint in tight shops. The recurring complaints are physical rather than performance: it weighs 255 pounds, measures 33 by 29 by 77 inches, and needs its own 230V circuit.
This compressor works if your garage has a 230V circuit
Owners with a shop already wired for 230V call the recovery predictable and the two-stage pump solid on sanders and grinders as well as the gun. At 65 dB it is also the quietest full-size machine here.
On r/Autobody, the recurring question is whether two-stage is worth the money over single-stage. For a machine that will run a compressor pump for years, cast iron two-stage with a 3-year warranty is the answer most experienced painters give.
It is not the right pick if you have never run a 230V outlet
The electrical requirement is a genuine blocker, not a footnote. An electric shop compressor of this size wants a dedicated circuit sized for the motor, and many residential garages simply do not have one.
Budget for installation alongside the machine, and expect oil changes in the schedule. Owners who ignore the service interval are the ones who report early pump wear.

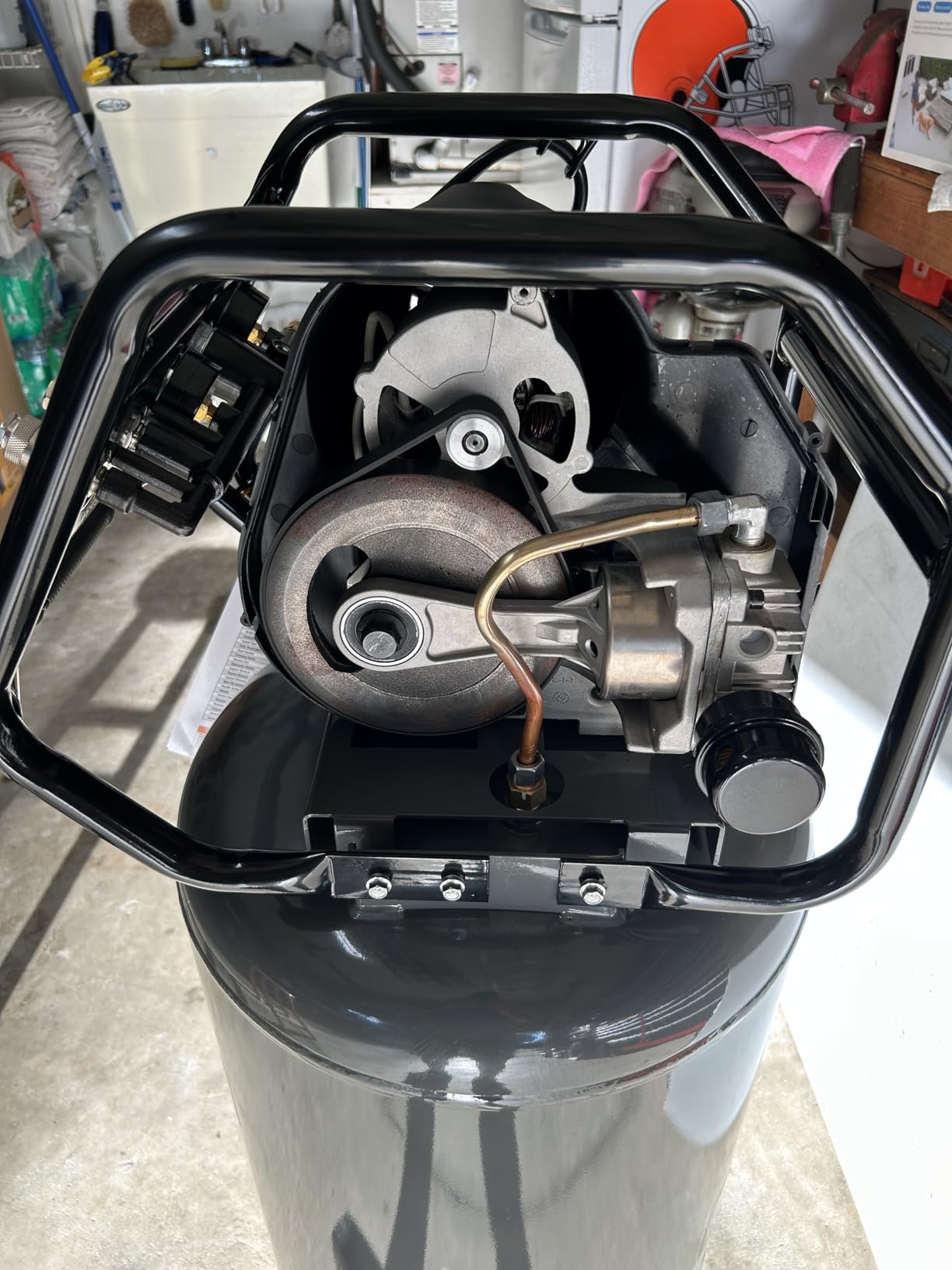

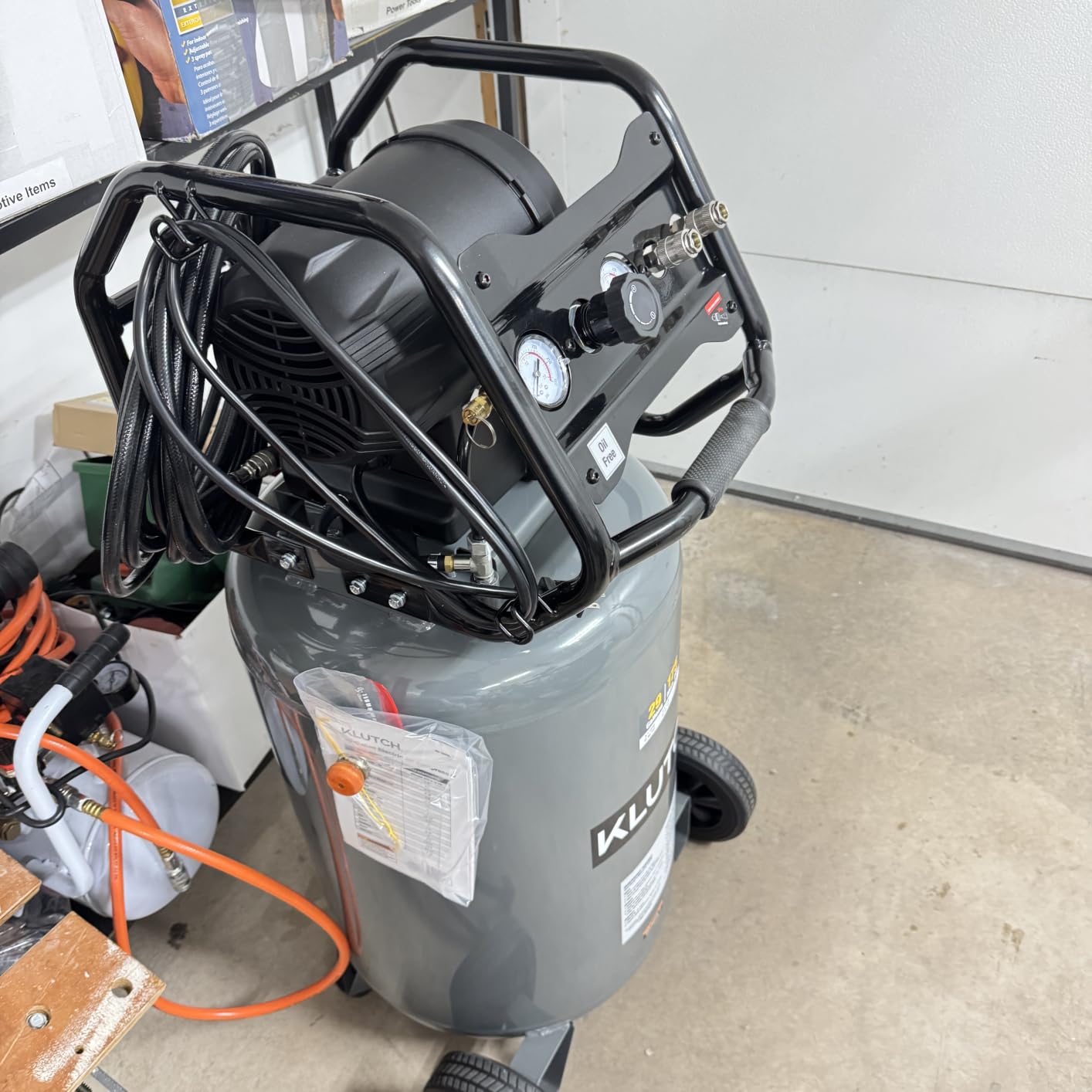

2. Klutch 29-Gallon Vertical: The Best Panel-By-Panel Workhorse on a Standard Outlet
Klutch 29-Gallon Air Compressor, 2.5 HP, 120V, 175 PSI, 5.1 CFM at 90 PSI
29 gal vertical tank
5.1 CFM at 90 PSI
2.5 HP, 120V, 14.5A
Oil-free
81 dB, 127 lbs
Pros
- Runs on a standard household outlet
- Oil-free pump needs no maintenance
- 29 gallons gives real reserve air
- Vertical format saves floor space
- Flat-free tires and a brass coupler
Cons
- 81 dB is loud for an attached garage
- 127 lbs despite the wheels
- Single-stage airflow caps sustained spraying
- Outlier safety report about a switch bypass
Model 203001005001 is the answer to the smallest-compressor-that-can-paint-a-panel question. Twenty-nine gallons, 5.1 CFM at 90 PSI, 175 PSI max, on a 2.5 HP 120V motor drawing 14.5 amps.
That means no electrical work at all in most homes. You plug it into a normal wall outlet, set the regulator to your gun’s inlet pressure, and spray a door or a fender while the tank holds the rest.
At 23.2 by 21.1 by 45.3 inches, the vertical footprint leaves usable floor space around it. Owners mention the brass quick-connect coupler and the flat-free tires as the details they notice daily.
The honest drawback is loudness. At 81 dB, this is the second-noisiest compressor here, and it is not a machine you want running in a garage attached to a sleeping household.
Best fit for someone painting one panel at a time in a home garage
The workflow works because the tank is large enough to cover a typical panel in one pass while you set the next one up. Painters using this approach report accepting the wait between panels as the trade.
Metallic and flake paints punish a sagging pressure more than solid colors do, so on those passes you reduce gun inlet pressure and slow your speed instead of pushing the flow rate.
Single-stage airflow is the ceiling on this machine
Five CFM will not sustain a high-volume gun for a long pass. Release the trigger at the end of a pass, let the pump catch up, and do not try to catch the same coat before the tank recovers.
If your garage shares walls with living space, look at a quieter compressor of similar capacity rather than running this one for hours.
3. Stealth 20-Gallon Ultra Quiet: Built for Garages That Share Walls
Stealth 20 Gallon Ultra Quiet Air Compressor,1.8 HP Oil-Free Peak 150 PSI 68 Decibel, 5.5 CFM @ 40 PSI 5 CFM @ 90 PSI Silent Long Life Electric Air Compressor W/Wheel for Garage
20 gal vertical steel tank
5 CFM at 90 PSI
1.8 HP, 120V
68 dB
121 lbs, 150 PSI max
Pros
- Quietest full-size pump in this lineup at 68 dB
- Limited lifetime warranty
- Oil-free means no oil in the air line
- 20 gallons suits panel and clear coat work
- Two quick couplers for gun plus sander
Cons
- 121 lbs is awkward to lift
- Some reports of motor hum and breaker trips
- Customer service described as hard to reach
- 150 PSI max is below the 175 to 200 PSI class
Model SAQ-12018 makes a specific argument: you can run a compressor in a residential garage and still have a conversation. Sixty-eight decibels is the lowest figure among the larger machines here.
Airflow is quoted two ways, 5.5 CFM at 40 PSI and 5 CFM at 90 PSI. Use the 90 PSI number when you compare it to anything else on this page, since 40 PSI figures are not interchangeable.
Reviewers consistently describe it as powerful enough for home garage tasks including spray guns and nailers. Two quick couplers means you can run a gun and a DA sander at the same time, which is where the 30 percent CFM buffer matters.
A minority of reviews report humming, breaker trips, or motor trouble within weeks of purchase. That is worth knowing about before you commit, especially since customer service is a reported weak point.
Good for clear coat passes and trim work in a quiet space
Clear coat and single-stage spray jobs are the sweet spot here, because you are laying thinner coats with less continuous demand than a full basecoat pass needs. The reduced noise matters more than the CFM shortfall in that use.
Owners also like the oil-free design for a simple reason: no compressor oil in the airstream is one less contaminant to strip out before paint goes on.
Weight and a modest warranty are the compromises
At 121 pounds with 8-inch rubber wheels, it moves around a garage floor but does not climb into a truck bed easily. Plan on it living in one spot.
The motor reliability reports are isolated rather than systemic, but if you are buying a compressor you hope to keep for a decade, factor it into the decision.

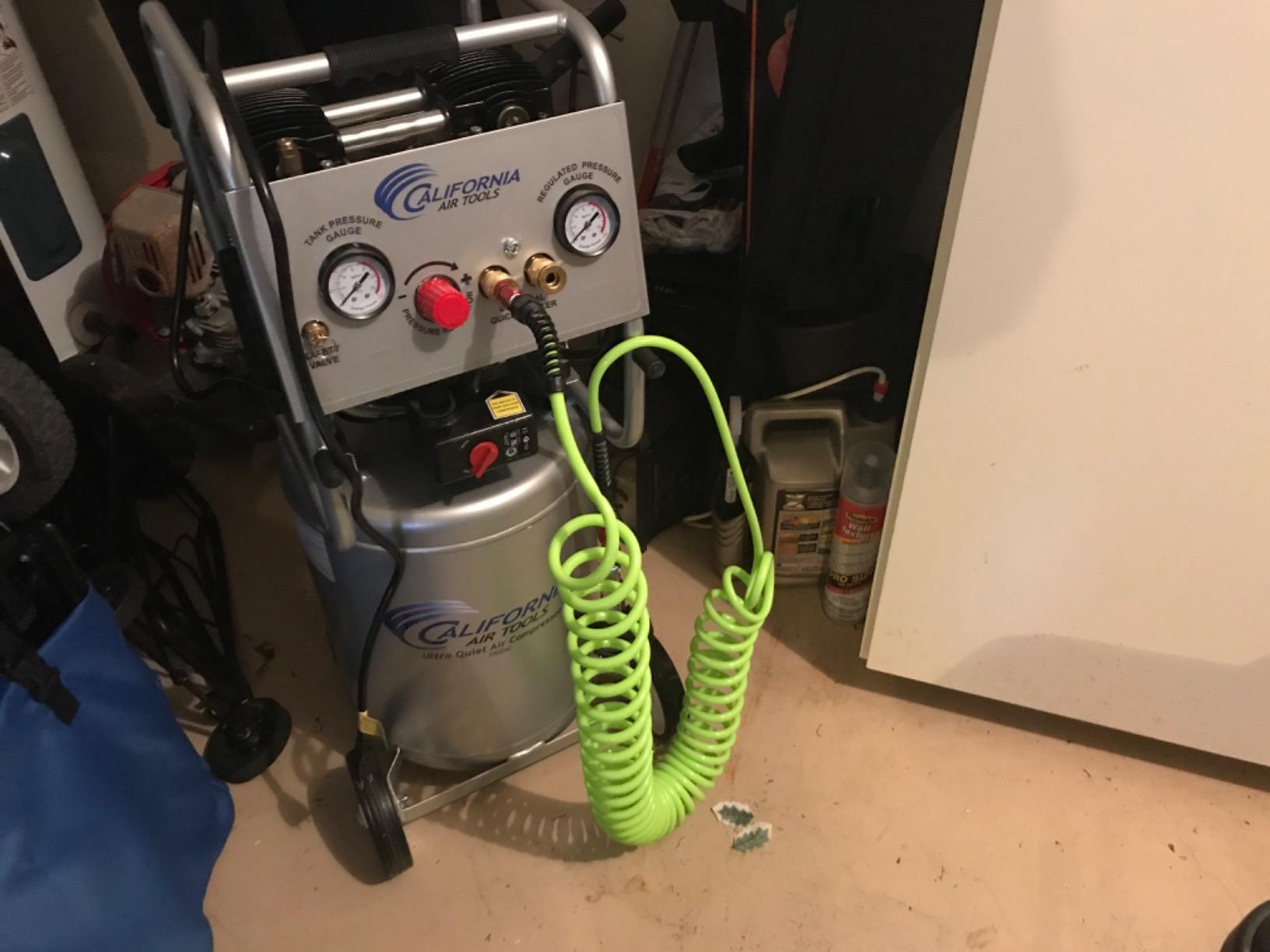

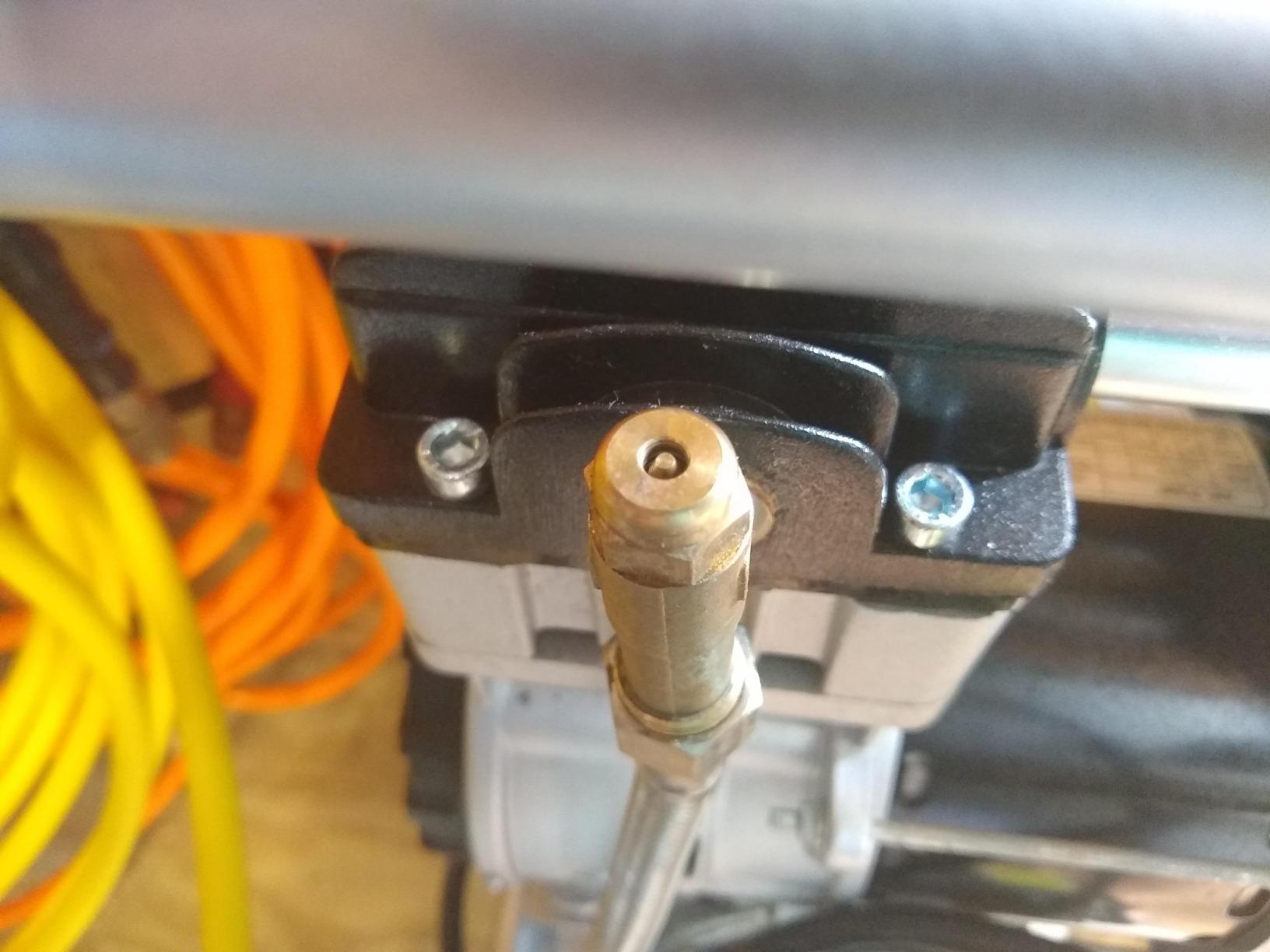

4. California Air Tools 10020C: The Quiet Standard Bearer for Detail Work
California Air Tools 10020C 2.0 HP Ultra Quiet and Oil-Free Air Compressor, 10 Gallon Steel Tank with Wheels, 70 dBA Noise Level
10 gal steel tank with wheels
5.3 CFM at 90 PSI
2.0 HP, 110V, 14A
70 dB
125 PSI max, 82.5 lbs
Pros
- Highest review count in this lineup
- 70 dB suits residential garages
- Oil-free dual piston rated 3000+ hours
- Easy Start valve lowers startup amps
- Handles brad nailers
- trim work and spot repair
Cons
- Only 125 PSI max pressure
- 10-gallon tank limits continuous use
- Some reports of small air leaks over time
- Intermittent duty only
- One year warranty
The 10020C has been on the market long enough that owner feedback spans many years of use, which is rare in this category. Rated 4.4 across more than fifteen hundred reviews, it is the most-proven machine on this page.
Specs are 6.40 CFM at 40 PSI and 5.30 CFM at 90 PSI, from a 2.0 HP motor at 1680 RPM drawing 14 amps on 110V. The lower RPM is a deliberate choice that reduces both noise and wear.
Owners like that they can talk normally in the same room while it runs. That is the practical meaning of 70 dB, and it is why this machine shows up in home shops that do nothing but finish work.
The recurring complaint is expectation rather than defect. A 10-gallon tank at 125 PSI is built for brad nailers, trim guns, inflation and touch-up, not sustained spray painting or sanding.
Best for spot repairs, trim, and one small panel at a time
Blend work, spot repairs, engine bay touch-ups and interior parts all fall inside this machine’s envelope. You are spraying briefly and letting the tank refill, not laying a full hood.
For a blended color match on a door, this is the level of compressor most people actually need. We have covered airbrush compressors separately if graphics are your goal.
Do not read the 40 PSI number as a paint-shop figure
The 6.40 CFM headline is measured at 40 PSI. At the pressure you actually spray at, the comparable figure is 5.30 CFM, and that is the number to compare against competitors.
Tank pressure can be one of two things: a rating or a reserve. On a unit this size, treat the tank as a buffer and plan your passes around the refill time.

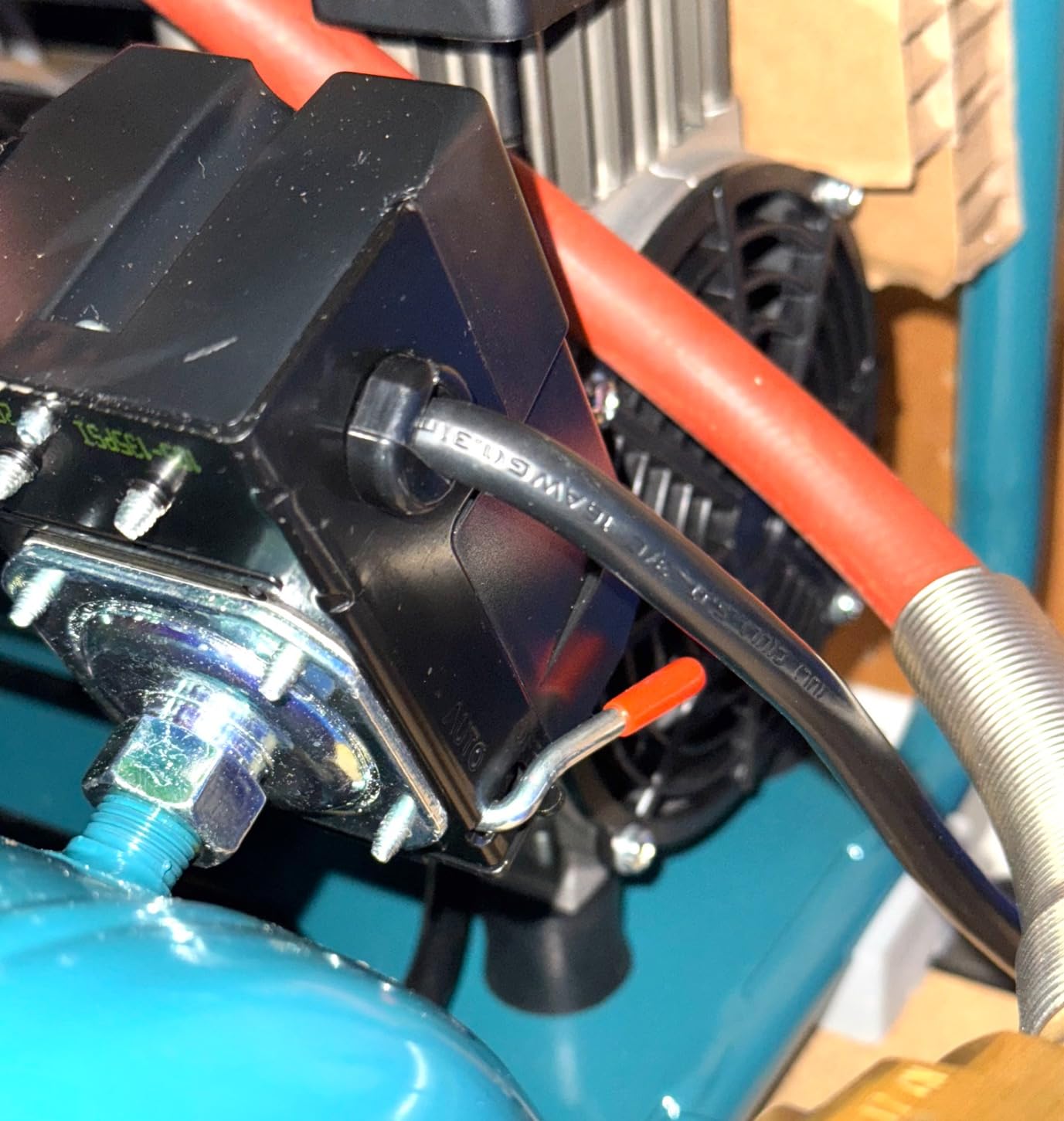

5. Makita MAC320Q: Quiet Enough to Sit Next to the Work
Makita MAC320Q Quiet Series 1-1/2 HP, 3 Gallon, Oil-Free, Electric Air Compressor
3 gal roll-cage tank
2.6 SCFM at 90 PSI
1.5 HP, 1750 RPM, 120V
60 dB
56.9 lbs, 135 PSI max
Pros
- Quietest compressor listed at 60 dB
- Roll-cage build protects internals
- Oil-free dual piston
- Lightest of the larger machines at 57 lbs
- Dual hose connections with individual gauges
Cons
- Only 2.6 CFM at 90 PSI
- 3-gallon tank ends a spray cycle quickly
- 135 PSI max
- No wheels at 57 lbs
- Larger in person than the listed dimensions
The MAC320Q is the quietest compressor on this page at 60 dB, and the build quality is what reviewers single out most. The complete roll cage is a real feature, not a marketing line, because it protects the motor when the machine is moved.
At 2.6 CFM at 90 PSI on a 3-gallon tank, this is detail equipment. It handles trim, airbrush, spot blending, and inflating, and it will not lay a basecoat.
Two hose connections each with their own gauge mean you can run a gun and a small sander at once without a splitter. That is genuinely useful for spot repair work.
Owners point out that the actual footprint is larger than the listing suggests, closer to 18 by 19 by 14 inches, and that at 57 pounds with no wheels you carry it rather than roll it.
The right machine for airbrush, trim and interior parts
At 1750 RPM the motor runs cooler and lasts longer than a higher-RPM universal motor of the same size. If you do detail work and value quiet over capacity, this is the one.
It also pairs naturally with a moisture trap and a small regulator, which is the standard airbrush setup we describe in the buying guide below.
Three gallons runs out mid-pass on anything larger
Know the limit before you start. A 3-gallon tank at 135 PSI gives you roughly a short burst before the pump kicks on, and it is not enough for a hood or a door.
For anything beyond detail work, this is an addition to a larger machine rather than a replacement for one.
6. DEWALT D55146: The Ten-Year Ownership Story
DEWALT Air Compressor, 225-PSI Max, Hand Carry with Wheels, 4-1/2 Gallon (D55146)
4.5 gal horizontal tank
5.0 CFM at 90 PSI
1.6 HP continuous, 120V
225 PSI max tank
78 dB, 88 lbs
Pros
- Ten-plus year ownership reports from owners
- 225 PSI tank pressure extends run time
- Oil-free and maintenance free
- 10-inch non-flat tires
- Protective metal console over gauges
Cons
- Draws a full 15A and wants a dedicated circuit
- Regulator caps near 150 PSI usable
- 88 lbs is a two-person lift
- Bulky horizontal footprint
- Universal couplers are not true high flow
Longevity is the story here. Owners report decade-plus service histories on these, which is a different kind of value than any spec sheet figure.
The tank stores up to 225 PSI, well above the 125 to 175 PSI range most machines here use, and airflow is 5.0 CFM at 90 PSI from a 1.6 HP continuous motor.
Reviewers note the regulator holds pressure accurately and the 225 PSI tank rating genuinely extends how long you can work between pump cycles. Higher stored pressure means a larger reserve at any given working pressure.
The catch is that the regulator caps usable output at roughly 150 PSI. For paint that is not a problem, since gun inlet pressure rarely exceeds 50 PSI.
Best for a garage where the compressor is bought once
If you want one compressor to serve nailers, sanders, and a gun for a decade, this is the pick. The oil-free pump removes maintenance from the equation entirely.
We also covered compressors for framing nailers if nailer duty is your main driver.
A 15A draw rules out shared household circuits
Owners report it draws more than 15 amps on startup and wants a dedicated circuit. Plugging it into a general-purpose outlet is asking for tripped breakers.
The universal couplers are convenient for mixed tool brands but are not true high-flow fittings, which matters slightly for airflow on large nozzles.

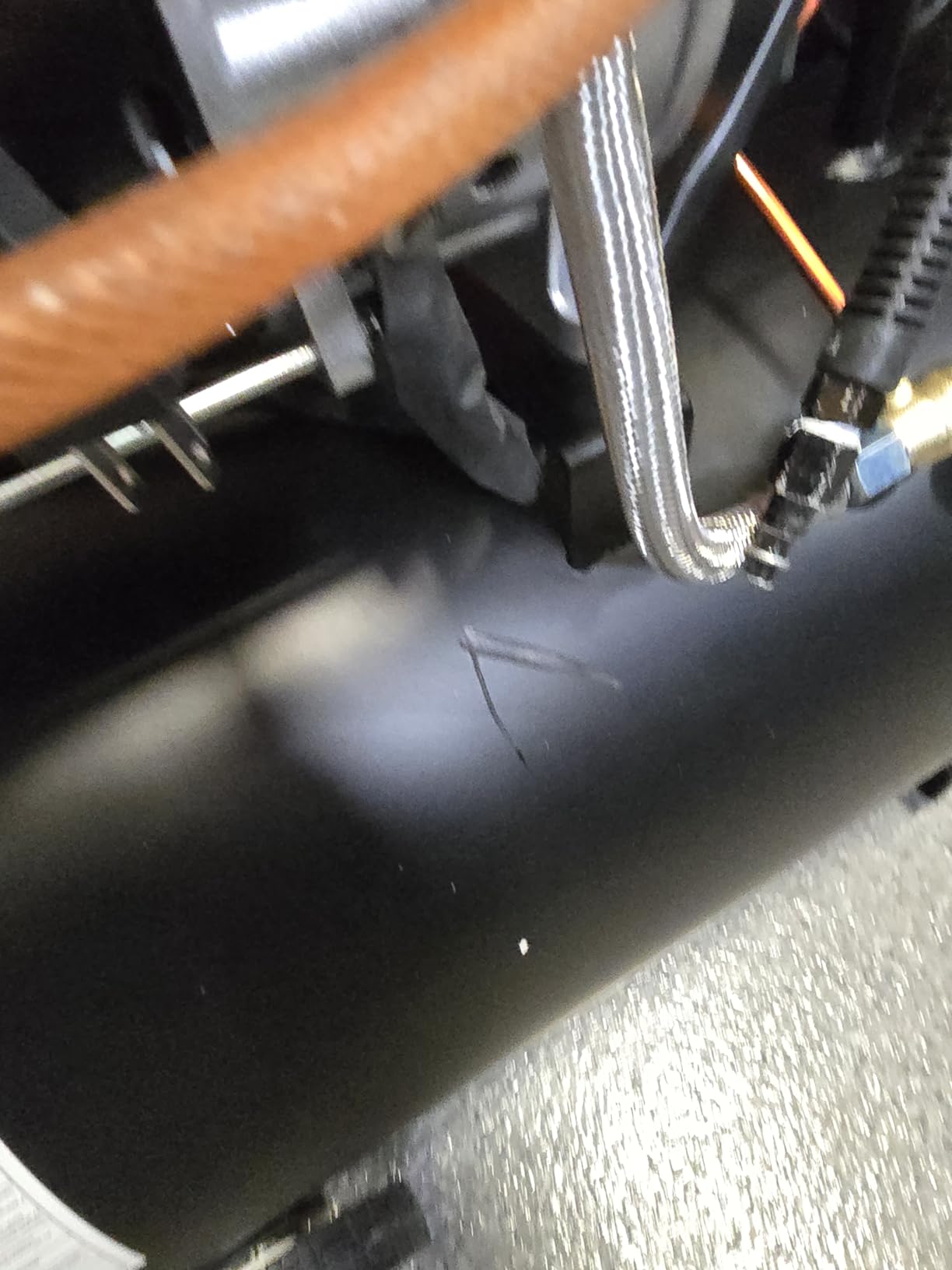

7. VEVOR 15-Gallon: The Most Tank for the Money
VEVOR Air Compressor, 15 Gallon Steel Tank, 2HP 5.3 CFM@90 PSI Oil Free Air Compressor & Max. 125PSI Pressure, 78dB Ultra Quiet Portable Compressor, for Auto Repair, Tire Inflation, Spray Painting
15 gal steel tank
5.3 CFM at 90 PSI
2 HP at 1680 RPM, 120V
78 dB
81.6 lbs, 125 PSI max
Pros
- 15 gallons and 5.3 CFM at a low price point
- Three-layer rust-resistant tank coating
- Large cooling fan with overheat protection
- Auto shutoff and pressure relief
- Dual quick couplers
- Available in 6.3
- 10 and 15 gallon versions
Cons
- Runs hot and is voltage sensitive
- Power cord is only about 40 inches
- Wheels and handle are weak
- 125 PSI max limits some work
- Not for continuous high-demand tools
Model FB1500D-221BS-10C60 pairs a 15-gallon tank with 5.3 CFM at 90 PSI, which is the most capacity-per-pound combination in this lineup. That makes it the value pick for a garage doing occasional painting.
The tank uses a three-layer construction: rust-resistant coating, powder coat, and Q235B structural steel, with a large cooling fan and automatic overheat protection built in.
Owners like it for tire inflation, brad nailers and light spray painting, and they consistently note the 78 dB silencer system is far quieter than typical pancake compressors.
The repeated complaints are physical: a power cord of roughly 40 inches, wheels and a handle that do not inspire confidence, and a motor that runs hot. It also will not start reliably on an extension cord or marginal wiring.
Good for light painting duty on a 120V circuit
If you are spraying a bumper, a set of brackets, or doing spot work between other jobs, the 15-gallon tank gives you more working time than most portable machines at this level.
Dual couplers let you keep a gun and an inflator ready at the same time, and the safety cutoffs are a genuine plus in a home garage.
Heat and wiring sensitivity limit heavy use
A hot motor is the most common complaint. Under sustained demand it runs warmer than most, and combined with the short cord it wants a properly grounded outlet close to where it sits.
For continuous spraying or running a DA sander at the same time, step up to a larger two-stage machine instead.
8. Metabo HPT EC914S: Fast Recovery in a Package You Can Carry
Metabo HPT Portable Pancake Air Compressor, 6 Gallon 200 PSI, EC914S
6 gal pancake tank
4 CFM at 90 PSI
1.3 HP, 120V
200 PSI max
73 dB, 41 lbs
Pros
- 200 PSI is 25 percent above basic pancake compressors
- 4 CFM runs several tools without constant cycling
- 41 lbs is genuinely portable
- Fast recovery between cycles
- Oil-free pump
- Japanese-engineered with a 1-year warranty
Cons
- 73 dB is loud indoors
- 6-gallon tank limits sustained spraying
- Pancake format is less stable than a vertical tank
- Oil-free pump life is finite compared to oil-lubricated
The EC914S, known in the trade as The Tank, is built around one idea: 200 PSI of stored pressure in a 6-gallon pancake. That is 25 percent more pressure than a basic pancake and 4 CFM at 90 PSI, roughly 30 percent more airflow.
At 41 pounds it is the lightest machine here with real tank volume, and it rolls to wherever the work is instead of living in one corner.
Reviewers report it running two framing nailers, two roofing nailers, or three finish nailers at once without cycling constantly. One test found it still holding 180 PSI after sitting for five days.
Where owners draw the line is spray painting. Four CFM supports touch-up work and small jobs with pauses, not a continuous coat on a large panel.
Best as a portable second compressor beside a bigger machine
The case for it is simultaneity. A small airbrush or spot gun on one coupler while the DA sander runs on the other is exactly what this tank size supports.
We have a separate roundup on portable compressors for job sites if portability is your priority.
Loudness and pancake stability are the trade-offs
Seventy-three decibels is fine in a detached shop and unpleasant in a room you work in. The pancake format also tips more easily than a vertical tank when you pull it across a threshold.
Oil-free pumps generally have a shorter service life than oil-lubricated cast iron. That is the price of skipping maintenance.

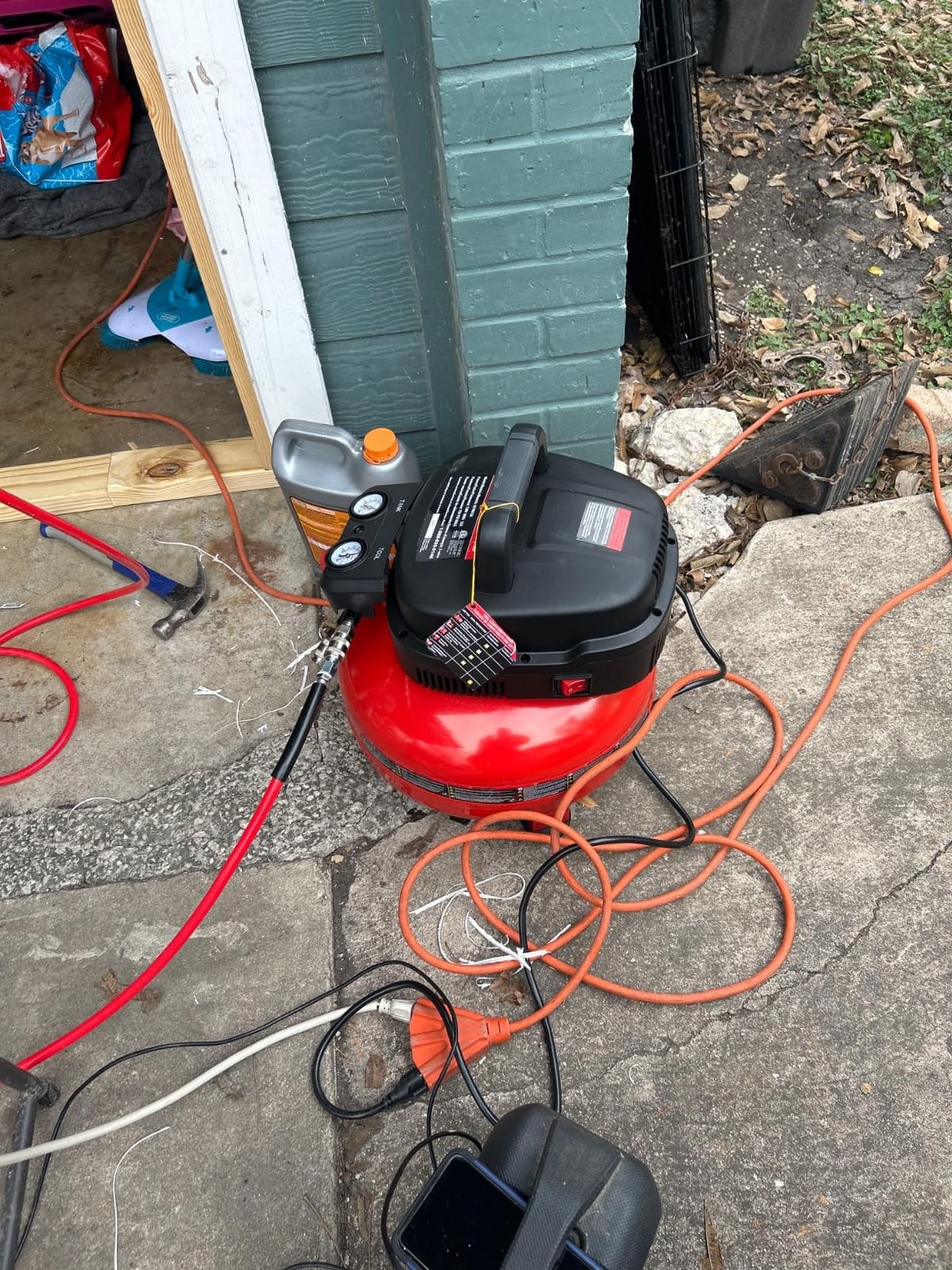

9. ECOMAX 6-Gallon Kit: The Sensible First Compressor
ECOMAX Air Compressor 6 Gallon 150 PSI Pancake Portable Oil-free Tank with 10 PCS Accessories Kit
6 gal pancake tank
3 CFM at 90 PSI
1.5 HP, 120V
75 dB
34 lbs, 150 PSI max
Pros
- Lightest compressor listed at 34 lbs
- 10-piece accessory kit included
- Highest average rating in this lineup
- Low-voltage and cold-weather start capability

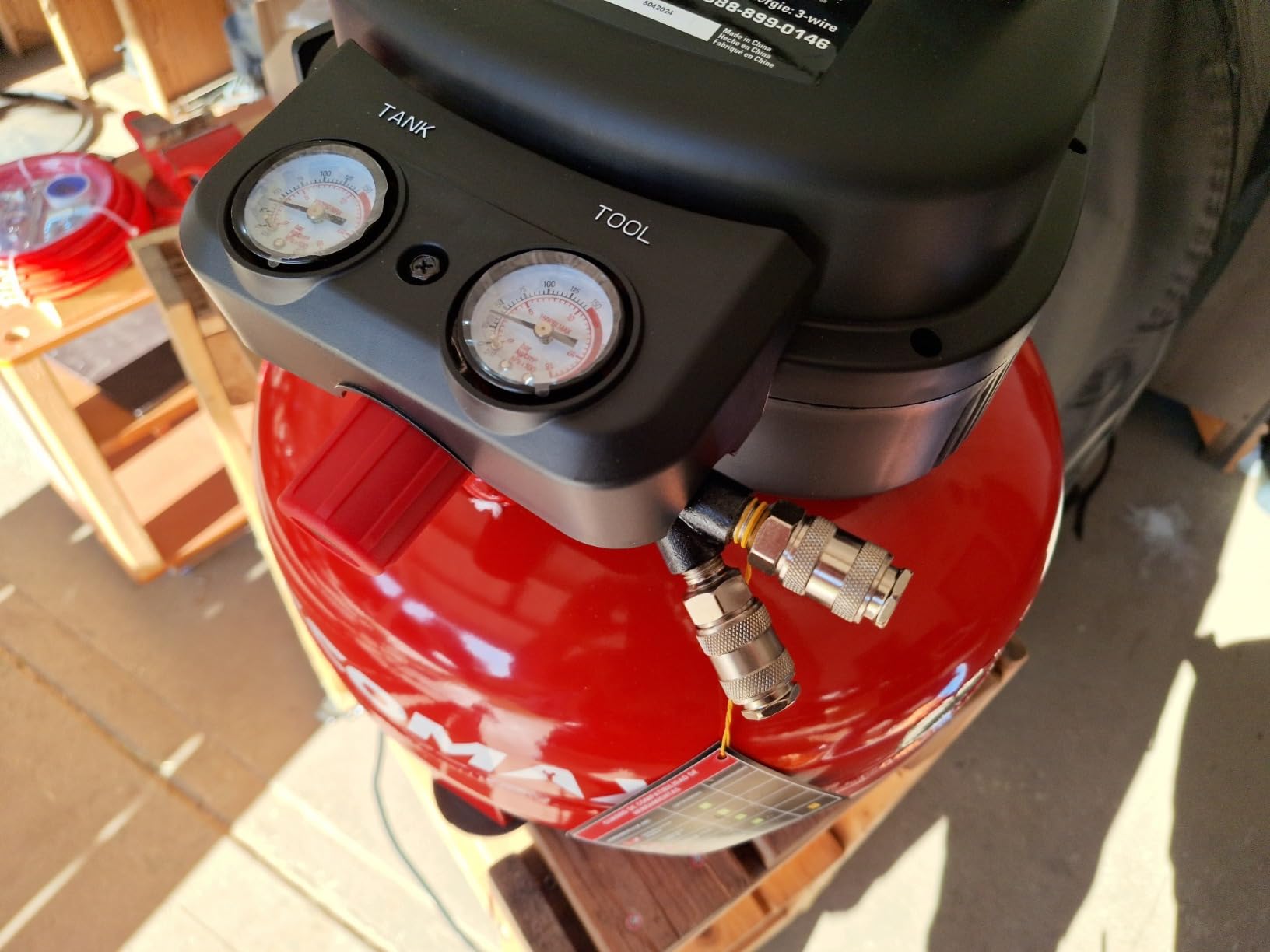

- Dual gauges and cord winding bracket
Cons
- Lowest airflow here at 3 CFM at 90 PSI
- 150 PSI max pressure
- 180W motor rating undercuts the 1.5 HP claim
- Kit components are basic
- Not for framing nailers or spray painting
The ECOMAX is the entry point. Model 0210673A comes with a 10-piece kit including a 25-foot hose, blow gun, tire chuck, couplers and gauges, which is most of what a first owner needs to buy anyway.
It holds 150 PSI in a 6-gallon pancake, weighs 34 pounds, and carries the highest average rating of any machine on this page. Value satisfaction is what drives that score.
At 3 CFM at 90 PSI this is the least air of anything here. It suits brad nailers, staplers, tire inflation and light blow cleaning, which is exactly where the rating comes from.
One detail deserves skepticism: the listing pairs a 1.5 HP claim with a 180-watt motor figure. Those do not agree, and that gap explains part of why the airflow number is modest.
Best for inflation, small fasteners and learning the basics
If you are furnishing a first workbench or a home shop for occasional use, the included kit removes the accessory shopping step entirely. Flip-up handle and low weight make it easy to move around.
The low-voltage and cold-weather start capability matters if your garage is unheated in winter.
Three CFM will not paint a car
Do not buy this expecting to spray a panel. The tank empties in seconds and the 150 PSI ceiling limits the gun pressure you can run.
Treat it as a tool compressor now and a stepping stone, and read the noise figure of 75 dB before planning where it will live.
10. VEVOR 13-Gallon: Quiet by Design, With a Reliability Caveat
VEVOR 13-Gallon Air Compressor, 2HP, 4.6 SCFM@90PSI, Oil-Free Tank, 66dB Quiet Operation, Ideal for Tire Inflation, Woodworking, Auto Repairs, and Spray Painting (Maximum Pressure 125 PSI)
13 gal vertical steel tank
4.6 SCFM at 90 PSI claimed
2 HP peak, 120V
66 dB
71 lbs, 125 PSI max
Pros
- Quietest vertical tank here at 66 dB
- 13 gallons gives useful reserve air
- Two reinforced rubber wheels move easily
- Fast air buildup
- Simple assembly out of the box
Cons
- Claimed airflow is well above measured output
- Failure to repressurize is the most common complaint
- Motor overheats under sustained load
- Weak warranty support
- No UL or CSA certification on electrical parts
Model DOF1500-50V-I is quiet for its size, at 66 dB, and the 13-gallon vertical tank is a sensible shape for a small garage. Wheels roll it across a concrete floor without much effort at 71 pounds.
Here is the number to know before you buy: the listing claims 4.6 SCFM at 90 PSI, and the manufacturer has acknowledged in its own question-and-answer content that real output is closer to 2.7 CFM.
Review feedback is polarized rather than bad. Light users are happy with the quietness and the value. Heavier users report machines that will not repressurize after the tank drains, motors that overheat and trip their thermal cutoff, and plastic components that fail within a few months.
Motor capacity is another caution. The 2 HP figure is a peak rating, with continuous output closer to 1 to 1.25 HP, which is a common specification style in this category.
Reasonable for light duty in a space-constrained garage
Inflation, brad work, and small touch-up jobs fit comfortably inside what this machine actually delivers. Running quietly in a residential garage is the genuine advantage.
If your work is occasional and light, the 66 dB rating and 13-gallon capacity are the deciding factors rather than raw airflow.
The airflow gap and failure reports deserve a second look
When a claimed 90 PSI figure is roughly double measured output, every other spec on the page deserves scrutiny too. Plan your passes around the lower number, not the headline.
Reviewers also report partial refunds rather than replacements when something fails, and note the absence of UL or CSA certification on electrical components. Keep your expectations aligned with that.
What to Look For: CFM at 90 PSI, Tank Size and Pump Type
Start with CFM at 90 PSI, because it is the only airflow figure you can compare honestly across machines. If a spec sheet quotes airflow at 40 PSI, that number is flattering and not interchangeable with a 90 PSI figure.
A single-stage compressor produces roughly 1 CFM per horsepower. A two-stage produces roughly 4 CFM per horsepower, because the second pass of compression moves more air for the same motor. That is the entire argument for two-stage on a paint job.
Budget for a buffer. If your gun needs 12 CFM, plan for roughly 16 CFM at 90 PSI to cover leaks, fittings and a slightly undersized line. Running a gun and a DA sander together pushes the requirement far higher, which is why most 20-gallon machines here cannot do both continuously.
Tank size is the number buyers fixate on and it is the least important. A receiver stores air so you do not have to wait between passes; it does not add capability. What tanks do control is how many seconds you get per cycle.
The tank format decides where the machine can live. Pancake tanks sit low and roll easily but tip more easily. Hot dog tanks are narrow cylinders that fit in tight corners. Vertical tanks stand tall, hold the most, and keep the floor clear.
Moisture, Oil Control and Where the Filters Go
Moisture and oil in the air line cause fisheyes, water pockets and blushing, and fixing those defects usually means a full repaint. Install filtration before you spray, not after.
Moisture separator: first in the line, right at the tank. It knocks out bulk water and is where most people stop.
Coalescing filter: second stage. It captures oil aerosols and fine mist that a separator misses.
Desiccant dryer: third stage, usually mounted at the gun. It pulls remaining moisture down to very low levels for clear coat and metallic work.
Refrigerated dryer: the answer when the piping run is short and you need a step beyond desiccant.
On filtration ratings, readers on AutoBody101 forums push back on a common over-specification. Filtering down to 0.01 micron is widely treated as overkill for paint, and desiccant cartridges rated there tend to cost more and are more sensitive to leaks. Buy for the job you are doing.
For hose, keep runs under 50 feet and use 3/8-inch or 1/2-inch line. Long thin hoses are the most common reason a compressor that meets spec on paper still sags mid-panel.
Electrical Requirements and Buying a Used Compressor
The 240V question comes up late in too many purchases, so answer it early. Most compressors in the 20-gallon and larger class draw enough current that they want a dedicated circuit rather than a shared household outlet.
A machine with a 15-amp motor needs a 20-amp breaker on its own circuit. Larger motors need a heavier breaker still, and the wiring run has to be sized for the load over the distance from your panel.
Gas-driven compressors avoid the wiring problem entirely but bring ventilation, noise and maintenance into the equation. For an enclosed residential garage, electric is the better trade.
Used versus new comes up constantly in paint forums and the consensus is clear: a sound older 60-gallon machine is a legitimate way to paint a car in a solid color. Threads on r/harborfreight note dozens of older compressors available locally that suit a single-car project.
Before buying secondhand, check these things in order:
Drain the tank and confirm it empties completely, with no water or oil left behind.
Run the pump and time how long it takes to refill. A unit that cannot recover is finished.
Check for rust around welds and the drain valve, and confirm the ASME tag and pressure rating are legible.
Listen for a knocking or grinding sound, which points to bearing or valve wear.
Verify the pressure switch cuts in and out cleanly and that the safety relief valve is present.
Check the motor run capacitor and start capacitor, the two parts most likely to have failed on an old unit.
Measure actual airflow against the plate on the tank, since published figures on old stock are often optimistic.
Tank size governs how long you can spray. CFM at 90 PSI governs how hard the machine sprays. Only the second number determines whether the finish will be even.
Frequently Asked Questions
What size air compressor should I use to paint a car?
For a full car in one session, use a 60-to-80-gallon two-stage compressor delivering 11 to 15 or more CFM at 90 PSI. For one panel at a time, 20 to 30 gallons is a workable compromise. For touch-up and airbrush work, 3 to 10 gallons is enough.
How many CFM do you need to paint a car?
A full-car basecoat with an HVLP gun needs 11 to 15 CFM at 90 PSI, and you should add roughly a 30 percent buffer for leaks and fittings, so plan on 15 to 20 CFM. A single panel with a lower-volume gun can be handled around 5 CFM at 90 PSI.
Is a 60-gallon air compressor enough to paint a car?
Yes, 60 gallons is the standard starting point for painting a full car, but tank size alone is not what decides it. Pair it with a two-stage pump and check the CFM at 90 PSI figure. A 60-gallon tank with single-stage airflow will still leave you waiting between panels.
Can you paint a car with a 30 gallon air compressor?
You can paint a car with a 30-gallon compressor, one panel at a time, if you accept releasing the trigger and waiting for the tank to recover between panels. You cannot lay a full car in one continuous pass, and metallics and flake punish a sagging pressure more than solid colors do.
Is a 2 stage air compressor worth it?
For painting, yes. A two-stage pump delivers roughly 4 CFM per horsepower against roughly 1 CFM per horsepower for single-stage, which means steadier pressure across a long pass with fewer pauses. If your compressor will only ever run nailers, single-stage is hard to argue against.
Do I need a 240V circuit for an air compressor?
Most compressors in the 20-gallon and larger classes do. A 15-amp motor needs a 20-amp breaker on a dedicated circuit, and larger motors need heavier wiring sized for the distance from your panel. Check this before you buy, because running one on a shared household outlet causes tripped breakers.
What is the best water separator for an air compressor?
A general-purpose moisture separator mounted at the tank is the essential first stage and handles most spray painting. Add a coalescing filter after it for oil aerosols, and a desiccant dryer at the gun for clear coat and metallic work. Filters rated at 0.01 micron are widely treated as overkill for paint.
Final Verdict
The Campbell Hausfeld 60-gallon two-stage is our pick for best air compressors for painting cars because it is the only machine here with the pump architecture the job actually calls for, and its 7.6 CFM at 90 PSI is the highest airflow figure any unit on this page publishes honestly.
If your garage does not have a 230V circuit and your project is one car or a set of panels, the Klutch 29-gallon on a standard outlet is the sensible substitute. For quiet garages and detail work, the California Air Tools 10020C remains the most proven choice, with more than fifteen hundred reviews behind it.
Whatever you choose, verify CFM at 90 PSI on the actual spec sheet, filter the air line before the first coat, and keep the hose run short. Those three habits prevent more ruined paint jobs than any brand difference.
