10 Best 60 Gallon Air Compressors for Home Garages (October 2026)

If you want one honest answer before you read a single spec: the best 60 gallon air compressors for home garages are the vertical-tank units that push 11 CFM or more at 90 PSI on a dedicated 240V circuit, and the Campbell Hausfeld XC602100 is the one we would put in our own garage. A 60-gallon tank is not the specification that matters. Airflow at working pressure is.

What 60 gallons actually buys you is time between pump cycles. The tank fills to cut-off, then your tools draw from that stored volume while the pump catches up. A bigger tank smooths out the gaps, which matters when you run a sander and an impact wrench back to back. It does nothing for you if the pump is weak, and two of the 60-gallon units in this roundup push 8 CFM or less at 90 PSI.

Everything in this list is a true 60-gallon tank. We compared ten of them, and we grouped them by what they are actually good at: heavy airflow, quiet running, tight floor space, first-time ownership, and low electrical draw. If your garage work is mostly nailers and tire inflation, a 20-30 gallon portable will serve you better and we say so further down. Our guides to air compressors for pneumatic tools and shop compressors for home garages cover the smaller sizes in detail.

Top 3 Picks for the Best 60 Gallon Air Compressors in 2026

All 10 Models at a Glance

Every compressor below has a 60-gallon tank. The differences that matter day to day are airflow at 90 PSI, whether the pump is single-stage or two-stage, whether it is oil-lubricated or oil-free, and the electrical draw you have to wire for.

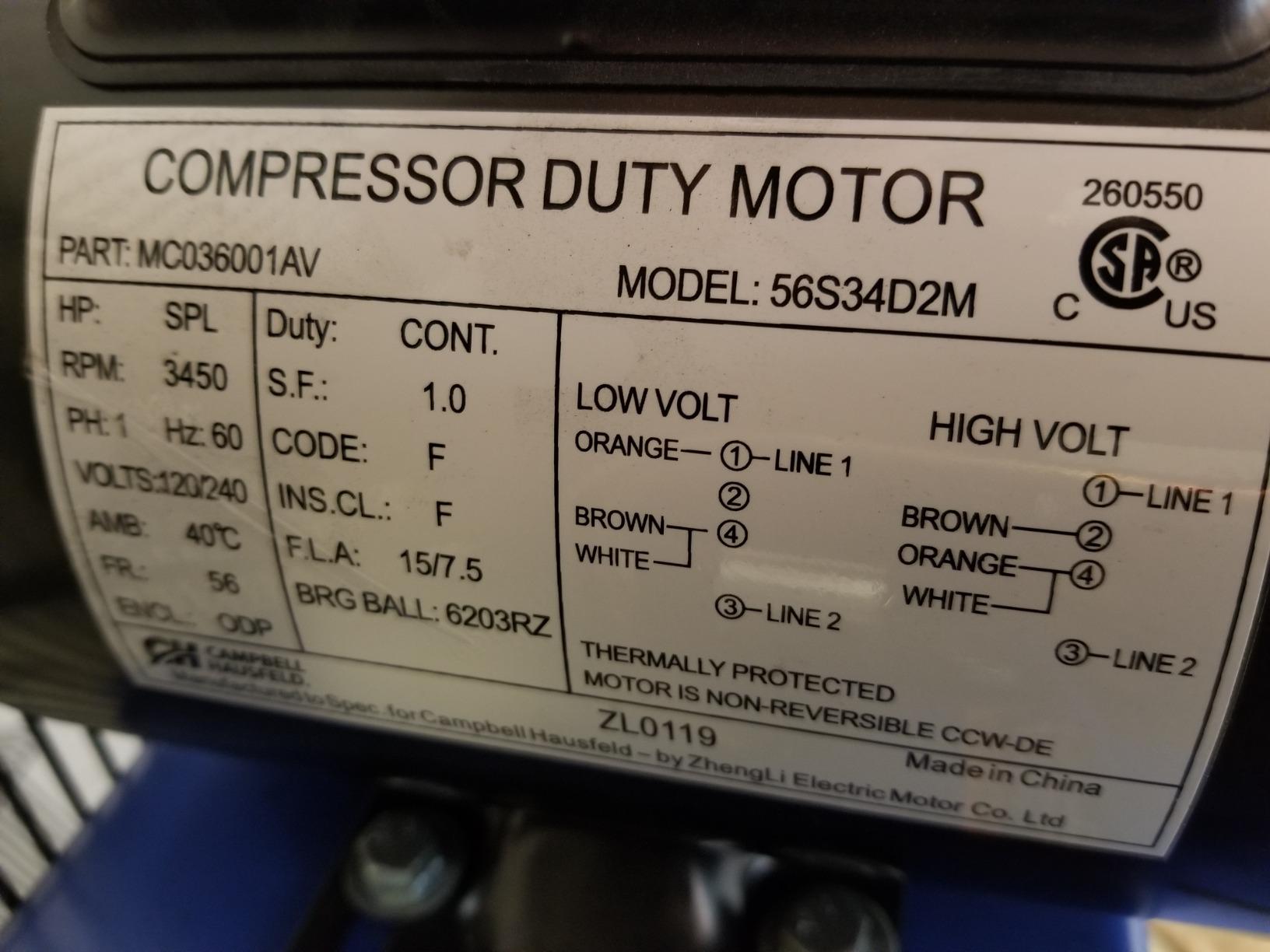

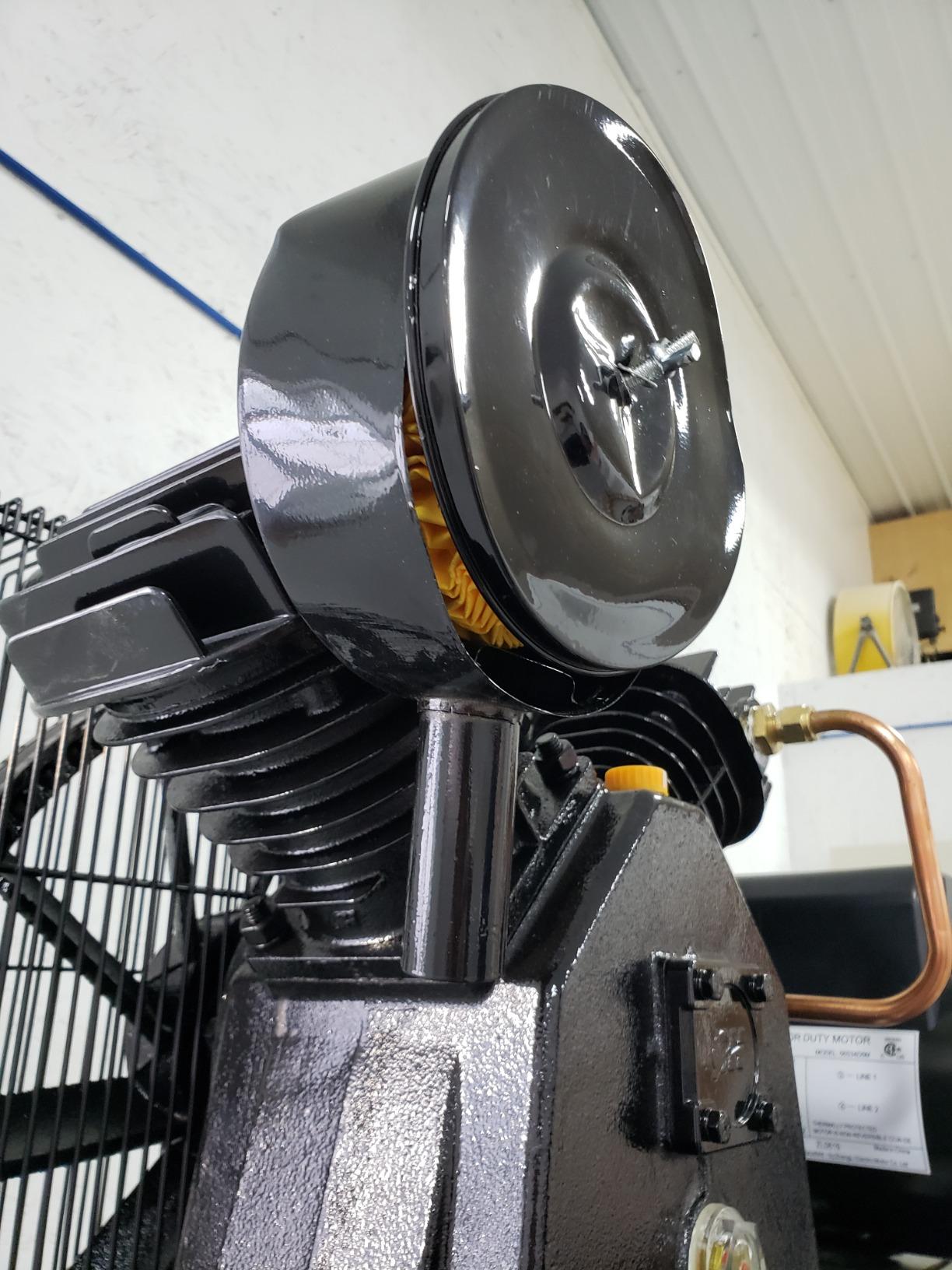

1. Campbell Hausfeld XC602100 60-Gallon Two-Stage – The Best All-Rounder

We spent the most time with this one, because it is the unit we would defend hardest in a group chat. The XC602100 is a two-stage, oil-lubricated cast-iron pump on a 60-gallon vertical ASME tank, rated by the manufacturer to 10000 hours based on B-10 bearing life. Two-stage compression is the meaningful part: air gets squeezed in two passes, so it runs cooler and delivers steadier pressure than a single-stage machine of the same size.

Measured output is 7.6 SCFM at 90 PSI and 6.9 SCFM at 175 PSI. That number is the honest weakness of this compressor. An air sander can want 13 CFM on its own, so if you plan heavy surface prep you will hear the pressure sag and wait for recovery. For impact wrenches, finish and framing nailers, air ratchets, inflating and occasional blasting, the 60 gallons of reserve smooths it out.

Buyers consistently call out the tank footprint and the build. At 33 by 29 by 77 inches and 255 pounds, it is one of the larger units here, so measure the bay before you order. The vertical format still wins over a horizontal tank, which would need roughly twice the floor length for the same volume.

Our main gripes: 14 percent of the ratings on this listing are one-star, and those reviews cluster around durability and support response rather than the pump itself. Fourteen percent is not a crisis, but it is enough to know that service experience varies. The published noise figure is 65 dBA, lower than you might expect for a two-stage reciprocating pump, though real-world noise in a closed garage runs higher than any rating. There is no plug, and the 3.7 HP induction motor needs its own 230/240V supply.

Is the 7.6 CFM rating a problem for a home garage?

For intermittent work it is not. A typical framing session, brake bleed, or round of finish nailing lets the pump refill between bursts. If you are running a belt sander continuously or blasting media, look at one of the 14-plus CFM units further down instead. Buying tank size to compensate for weak airflow is the most common sizing mistake we see in garage forums.

The other consideration is how the tank behaves when pressure drops. A 60-gallon tank losing 20 PSI gives up roughly 8 cubic feet of usable air at typical working pressure, which is what smooths a short stall into a brief dip rather than a tool that stops dead. That smoothing is exactly what the two-stage pump preserves better than a single-stage design under load.

Who should pass on this compressor?

Skip it if noise matters to you. The published 65 dBA figure is on paper only, and a two-stage reciprocating pump of this size is still audible in an attached space once the tank starts cycling. It is also the wrong tool for continuous-duty blasting or a second simultaneous high-draw device, because 7.6 SCFM leaves little in reserve.

Anyone renting a garage or working in a space where a 255-pound floor model is inconvenient should look at a lighter option. Buyers who want zero oil changes and a published noise number have better-matched choices in this list as well.

2. California Air Tools 60040DCADC 60-Gallon Oil-Free with Air Dryer

On paper this is the compressor for a paint booth or an attached garage. Two 2.0 HP motors turning at 1680 RPM, an oil-free dual-piston pump, an integrated 98 percent air dryer with aftercooler, and a factory-installed EZ-1 automatic drain valve. Rated airflow is 12.80 CFM at 40 PSI and 10.60 CFM at 90 PSI, and the whole package is designed around paint and finishing work rather than general shop duty.

The catch is the review record. Three reviews and a 2.5-star average, with 62 percent of those ratings at one star. Owners who filed reports describe units arriving with manufacturing defects that never reached rated airflow, plus slow support response and long replacement turnaround. We are listing it because the specification set genuinely is the quietest and most paint-focused here, not because the feedback backs it up.

At 213 pounds and 25.5 by 29 by 66.5 inches, expect a freight-style delivery and a dedicated 220V connection. The trade-off is deliberate: you are paying a significant premium over the conventional oil-lubricated units in this roundup for air that arrives dry, quiet and suited to finishing work.

Does the built-in air dryer make paint work better?

Yes, and this is the reason to consider an oil-free unit like this one at all. Water in the tank lines shows up as mottling and fishtail defects in a spray booth. A 98 percent dryer plus a refrigerated-style aftercooler removes most of the moisture, and the automatic drain means you are not chasing water with a bucket every week.

It only makes a real difference if you paint. If you are inflating tires, running nailers and doing brake work, you can get the same result for less money with a coil of drain line and a brass moisture separator at the outlet. Consider our home workshop compressor picks if finishing work is not on your list.

What are the risks of buying this one?

Thin feedback is the first risk. Three reviews is not enough to know whether the pump holds up, and the small sample is unusually negative. One-year limited warranty is the shortest in this roundup, and it is the shortest warranty on a machine with a built-in dryer and drain valve, which are the parts most likely to fail.

The second risk is that the published specifications on this listing are inconsistent, with the tank pressure given in bar rather than PSI. Before you order, confirm the tank pressure rating and the CFM figure at 90 PSI on the page you are actually buying from.

3. Quincy QT-54 5 HP 60-Gallon Vertical

The QT-54 is the oldest design in this roundup. It has been listed since 2008, which tells you two useful things: parts will exist for a long time, and the platform is proven. It is a 5 HP, 230-volt single-phase splash-lubricated reciprocating compressor on a 60-gallon vertical receiver, part number 2V41C60VC.

What owners praise is stability. Reviews describe smooth, quiet running with minimal vibration when the machine is mounted properly, and pressure that recovers quickly enough to keep up with media blasting. Splash lubrication means you check an oil sight level visually instead of scheduling drain-and-fill service. A 4.0 average across 65 reviews with 65 percent five-star is a solid long-term record for a piece of shop equipment.

The durability concern is not the pump, it is the electrical components. Multiple reviews report Baldor motors and pressure switches failing within or just past the one-year warranty window. That is a known pattern with commercial-grade compressors sold with consumer-grade warranty terms, and it is the single biggest reason this is not our top pick, even though owners describe it as the most solidly built machine in the roundup.

Plan for the logistics too. At 475 pounds and 29 by 21 by 70 inches, this is a pallet freight unit rather than a curbside drop you can move with a hand truck alone. The vertical format is a genuine plus in a single-car garage, and the drain valve mounted on a tank leg is a detail that shows the design was thought about.

Is a 5 HP single-phase compressor right for a home garage?

It is more than most garages need, and that is fine as long as your electrical service can carry it. A 5 HP single-phase 230V motor draws substantially more current than the 3.7 HP units in this list, and that is where tripped breakers come from. In a panel with a spare 30A slot you are set. In a panel without one, this is a job for an electrician before the compressor arrives.

On the other side of that, 5 HP is the reason it keeps up with blasting and sustained heavy work when a 3.7 HP unit stalls. If your garage work involves media blasting, engine work, or running two tools at once, the extra power is worth the electrical conversation.

What should you check before ordering a pallet unit?

Confirm the delivery path, not just the machine. A 475-pound vertical tank needs a clear route from the receiving door to its final position, and often needs to be walked into place before the tank is fully plumbed. Measure the bay: 70 inches tall and about 29 inches wide is the number that matters for clearance above a vehicle.

Second, ask the seller about parts support in your region before you commit, because that is where the risk sits with this machine. The pump and cast iron components are serviceable for decades. The motor and pressure switch are the consumables, and the one-year warranty does not cover you for them long-term.

4. DeWalt DXCMV5076055 60-Gallon Two-Stage 5 HP

The DXCMV5076055 publishes 15.3 CFM of airflow, the highest rated figure among these ten. It is a two-stage, belt-drive, oil-lubricated 5 HP pump rated to 175 PSI on a 60-gallon ASME tank, and it carries a listed noise figure of 65 dBA. Owners running impact drivers and plasma cutters report that it holds full pressure rather than sagging, and refills from about 130 PSI back to 175 in roughly a minute.

Two-stage compression at 175 PSI is the right architecture for sustained heavy tool use. Single-stage pumps heat up faster and deliver less air as pressure climbs, which is why so many single-stage 60-gallon units stall on a big sander. The automatic tank drain valve is a nice addition for a machine that will hold water in a cold garage.

The 3.7-star average across 34 reviews is the part to read carefully. Performance praise is common. Quality control complaints are not: we see reports of a hole in the welded tank seam on arrival with unresolved support response, and of units shipping with a rusty pipe bushing. Inspect the tank and every fitting the day it lands, before you run it.

There is also no wiring instructions in the box, and the manual contradicts manufacturer support guidance on oil type and power disconnects. Owners recommend rubber isolation mounts to limit vibration transfer, which is a small cost that protects your framing and your neighbors.

Why does two-stage compression matter more than tank size?

Because airflow is what your tool feels every second it runs. Two-stage pumps compress in two passes, which means more air delivered at higher pressure with less heat in the cylinder. A 60-gallon tank with a weak pump feels like a small tank. A smaller tank with a strong two-stage pump can feel larger, because the pressure never dips far.

The practical result is recovery time. When a tool drops 20 PSI, a pump moving 15 CFM replaces that volume far faster than one moving 6 CFM, so your sander or impact wrench gets back to pressure while you are still on the same fastener. If you do any sustained work, buy airflow.

Is a 3.7-star average a warning sign here?

It is worth watching, especially with 18 percent one-star ratings in the sample. The complaints cluster around inbound quality and documentation rather than the machine failing under load, which is a more recoverable pattern. A unit with a bad fitting can be replaced. A unit whose motor fails at 800 hours cannot.

Open the box, pressure test the tank, check the seam and the bushing, and confirm the oil type with the manufacturer before first run. If a seller will not take returns on freight damage, that is the answer already.

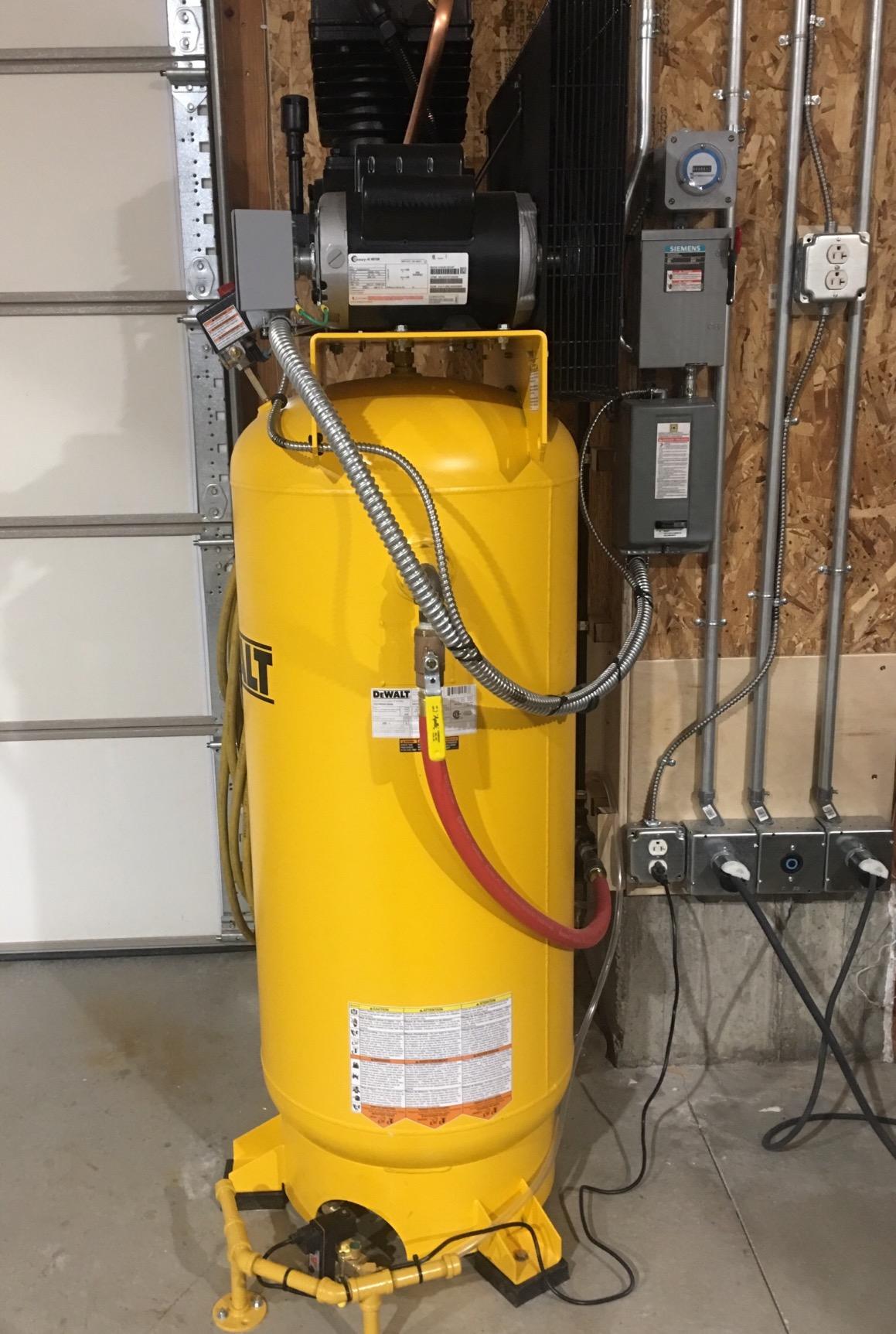

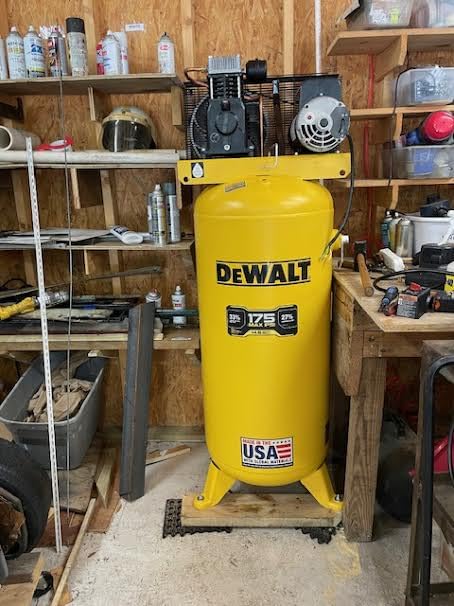

5. DeWalt DXCM603 60-Gallon 5 HP Vertical

The DXCM603 is the value pick. It delivers 14.6 SCFM at 90 PSI on a 5 HP motor running 240V at 20A, holds 175 PSI, and comes on a vertical stationary tank rated for air brushing, blow cleaning, cutting, drilling and sanding. Very few 60-gallon units put that much airflow in that little package.

The rating distribution is strong: 4.3 stars from 21 reviews with 77 percent at five stars. That is a small sample, so treat it as encouraging rather than conclusive. The warranty split is worth noticing, since a two-year pump warranty alongside a one-year parts warranty is a sensible structure and better than a blanket one-year term on a machine built this way.

At 70 dBA this is not a quiet machine. It is a shop compressor that happens to be vertical and reasonably compact, and the noise figure is printed on the spec sheet rather than hidden. In a detached garage that is a non-issue. Above a bedroom it is not.

Everything else about the install is straightforward. It is a stationary vertical configuration, so you are bolting it down and dedicating a 240V 20A circuit. Buy the regulator, the drain line and a good hose at the same time, because the compressor itself is the easy part.

Is 20 amps enough for a 5 HP 240V compressor?

For this one, yes, because the manufacturer rates it at 20A. That is the figure the nameplate and the circuit should both match. The breaker trips in the stories we read on garage forums almost always come from a 5 HP machine on a 20A circuit, which is a different configuration than this listing specifies.

The real rule is simple and worth repeating: match the circuit to the motor nameplate, not to the horsepower you assumed you had. If the nameplate says 20A, put it on a 20A circuit with 12 gauge wire. If a seller lists a 5 HP 240V machine without an amperage figure, treat the circuit requirement as unknown until you confirm it.

Is this the right first 60-gallon compressor to buy?

For most home garages, yes. The airflow number means it will not disappoint you the first time you pull the trigger on a sander, the vertical format fits a single-car bay, and it costs less than the commercial units in this list. You give up a longer pump warranty and some quietness, which most people will happily trade.

If your work is mostly light, skip past this and start at the sizing section below. A 60-gallon tank is overkill for finish nailing and tire inflation, and pairing a small portable with a machine like this is a more sensible garage than one oversized unit. Our portable compressor guide covers the small end.

6. DeWalt DXCM602 60-Gallon 3.7 HP Single-Stage

Where this machine wins is space. At 200 pounds and 22.5 by 22.5 by 65 inches, it has the most compact footprint of any 60-gallon unit in this roundup, and it carries an ASME-certified tank. If your garage bay is tight and you are sharing space with a vehicle, that footprint may matter more than any spec on the sheet.

It delivers 11.5 CFM at 90 PSI and holds 175 PSI. The 3.7 HP motor is spread-volt, so it accepts either 208V or 230V, which removes one of the more annoying electrical unknowns when you are working from an older panel. That is a real convenience that most listings in this class do not offer.

Now the honest part. The 87 dBA rating is the loudest here by a wide margin, and several owners added sound dampening after purchase. The rating is 3.5 stars from 12 reviews, with 17 percent one-star, and the complaints include arrival damage with denied warranty claims. It also comes with no power cord, so you need a matching electrical lead sourced separately.

Is 87 dBA workable in a residential garage?

In a detached garage, yes, and most people stop noticing it within a week. In an attached garage or above a living space, no. Conversation at normal volume becomes difficult and the unit is genuinely disruptive at night, which is exactly the complaint attached-garage households raise in forums.

There is no cheap fix that changes the fundamental number. Isolation pads help with structure-borne vibration, which is often the part people feel through the floor, but the airborne sound from an 87 dBA single-stage pump is coming from the pump itself. If noise is your binding constraint, choose a different machine.

Is single-stage 175 PSI worth buying at all?

For nailers, ratchets, inflating, spray guns that are not running constantly, and general garage tasks, yes. Single-stage pumps are simpler, cheaper to maintain and perfectly adequate when you are not asking for sustained airflow. The failure point is continuous demand: 11.5 CFM will not keep up with a small cabinet sandblaster or a wide-belt sander running back to back.

Buy single-stage if your duty is intermittent. Buy two-stage if you plan to sand, blast or run two tools at once for more than a few minutes at a time. That is the entire decision, and it is a better use of your money than upgrading tank size for a second time.

7. Porter-Cable PXCMLC3706056 60-Gallon 3.7 HP

The Porter-Cable sits right in the middle of this list on paper: 3.7 running HP, 13.4 CFM at 40 PSI and 11.5 CFM at 90 PSI, 60-gallon vertical receiver, factory filled with synthetic oil, gauge and on/off switch included. Nothing about it is exotic, which is the point.

It arrives ready to run. Synthetic oil is already in the pump, so you are not filling a sump in a cold garage on day one. The rating is 4.3 stars from 11 reviews with 74 percent five-star, and the support line being toll-free matters more than it sounds when you are a first-time owner who does not know what a magnetic starter is.

The thing to resolve before you buy is the pressure listing. The product data shows a maximum pressure figure of 90 PSI, which is inconsistent with every other 60-gallon machine in this roundup and inconsistent with a pump rated for 175-class work. Ask the seller to confirm the actual ASME tank rating in writing. A 90 PSI tank would not be a normal build for this class.

Is a first 60-gallon compressor easy to set up?

The mechanical side is easy: level it, bolt it down, attach the drain, connect a regulator and hose, run the tank drain until you see steady air, and you are done. The electrical side is where beginners get stuck, and this machine needs a dedicated 230V circuit with no plug.

Budget an afternoon for the install, not an evening. If you have ever changed a receptacle, you can do this, but if your panel has no spare 20A or 30A slot, stop and call an electrician. A 3.7 HP motor on a shared circuit is the single most common cause of nuisance breaker trips we hear about.

What does the 90 PSI listing mean for my tools?

Almost certainly nothing, because the number is inconsistent with the rest of the specification. Nearly every pneumatic hand tool, including impact wrenches and HVLP guns, operates comfortably in the 60 to 90 PSI range, and a 90 PSI tank could still run them fine. It is the sanders and the spray work that care about headroom above 100.

Treat the 175-class figure on comparable 60-gallon machines as the realistic expectation, and confirm before purchase. Do not let a listing inconsistency stop you from buying an otherwise well-matched machine, but do make sure the seller answers the question.

8. Quincy Q13160VQ 60-Gallon 3.5 HP Single-Stage

This is the highest-rated machine here, and also the one with the least evidence behind the rating. Four point six stars from 10 reviews, with 79 percent five-star and zero one-star ratings. Owners with industrial backgrounds describe it as running quiet and smooth. The 68 dBA published figure puts it in the quieter half of this group, alongside the two 65 dBA listings, and well clear of the 85 to 87 dBA machines.

On the numbers, 12.4 CFM at 100 PSI from a 3.5 HP motor is a good ratio. A 1250 RPM reciprocating pump on 230V single-phase with a finned half-inch outlet, built in cast iron and aluminum, is a conventional, serviceable machine. It is also described as a straightforward drop-in replacement for an existing installation, which tells you it follows standard dimensions.

Our reservation is the sample size. Ten reviews is not enough to call 4.6 stars a durability signal, and the single negative data point is a pressure switch failure at the one-year mark, which is the component most likely to end a long ownership early. That said, a brand this old with parts availability this broad is a low-risk bet on repairability.

Is 68 dBA enough for an attached garage?

It is in the lower range for a conventional compressor and much easier to live with than the 85 to 87 dBA machines in this list. You will still hear it start up, and you will hear it running while a tool draws air. What you should not hear is the aggressive rattle of a worn pump or the whine of a failing bearing.

If your garage is directly under or next to a bedroom, test before you commit. Stand where you sleep, run a sander for three minutes, and decide. Speakers and door seals solve more than people expect at this level, and nothing solves 87 dBA.

What is the real longevity story on this model?

Reciprocating cast iron pumps with a 1250 RPM motor are mechanically simple and mechanically long-lived when oil changes happen. That is the honest strength here. The weakness is the one-year limited warranty, which means every failure past month twelve is on you.

Keep a spare pressure switch and a spare capacitor on the shelf from day one, check the oil level monthly, and drain the tank weekly. A machine like this will outlive the warranty comfortably if you treat it as equipment rather than an appliance, which is exactly what the owners with multi-year experience report.

9. JEGS 555-81850 60-Gallon 3 HP 110V

The reason this machine exists is electrical. It is the only 60-gallon compressor in this roundup that runs on 3 HP 110-volt single-phase power, which means it can plug into a standard household circuit with no panel work, no electrician and no 240V run. If your garage does not have a spare 20A or 30A slot, that convenience is worth paying a real price for.

You are paying for it. This is a V-Twin single-stage unit rated at 8.6 CFM at 40 PSI and 6.3 CFM at 90 PSI, with a 115 PSI maximum. That airflow figure is the weakest in the group, and 115 PSI is the lowest tank pressure of anything we shortlisted. A sander will stall it. A framing nailer will not.

The feedback is the weakest too: 3.3 stars from 5 reviews, with 42 percent one-star. Reported problems include a broken flywheel pulley on arrival, factory air leaks at valve joints, and part shipments that never arrived. The 30-day warranty and a 30 percent restocking fee make this a difficult purchase to unwind.

Can a 110V compressor run a sander or a paint gun?

An air sander, poorly. A paint gun, poorly. At 6.3 CFM at 90 PSI and 115 PSI maximum, a HVLP gun that wants 15 to 25 CFM will run the pump continuously and still lose pressure. This is a nailer, ratchet and tire machine. It is not a finishing machine, and treating it as one is how people end up disappointed.

There is a smarter version of this idea. Run a 60-gallon 110V machine like this for storage and light duty, and add a small high-flow pancake unit for finishing work when you need it. That two-compressor setup costs less than one premium quiet unit and gives you both airflow classes. Our framing nailer compressor picks cover the small-tank side.

Should I accept a 30-day warranty?

Only if the return window is genuinely free. A 30-day term with a 30 percent restocking fee means a unit that fails in month two costs you most of the purchase price to send back, and buyers of this machine report exactly that frustration with parts shipments going undelivered and a refund being the only exit.

Run it hard for the first month with no tools attached, just cycle it and listen. Listen for the unloader kicking in and the pump stopping clean, and listen for any hiss at the valve joints. If it is quiet and holds pressure, the inbound quality is good. If it is hissing, send it back immediately.

10. VEVOR 60-Gallon 3.7 HP 8 SCFM

The dual air outlets are the distinguishing feature here, and they are genuinely useful. Two separate outlets let you run a sander on one and a nailer on the other without a splitter, which is a real convenience in a one-bay garage where everything shares one wall.

The tank specification is also better than average for the money: 3mm carbon steel with a powder-coated, corrosion-resistant surface, and a belt-driven pump head with an oil observation mirror so level checks take ten seconds instead of twenty minutes. At 192.7 pounds and 24 by 20.9 by 55.5 inches, it is the lightest listed weight per gallon among these 60-gallon machines.

Against that, three reviews at 3.4 stars with 41 percent one-star is essentially no data. Eight SCFM at 90 PSI is on the low side for a tank this size, 85 dBA is loud, and the maximum pressure field in the listing is written in pascals rather than PSI, which is a listing-quality red flag on its own. It is also positioned for industrial manufacturing rather than typical home garage duty, and no plug is included.

Are dual air outlets actually worth having?

They save you a manifold and give each tool a full flow path. Whether that matters depends on the pump. Two outlets on a machine pushing 8 SCFM still leaves 4 CFM per tool while the pump is running, so the benefit is convenience rather than doubled capability.

On a stronger pump the same feature becomes a genuine productivity gain. That is the argument for matching the outlet count to the airflow, not just picking the compressor with the most ports. If you plan to run two tools simultaneously for extended periods, spend the money on airflow and take the single outlet.

What should I verify before buying this one?

Get the pressure rating in PSI in writing, from the seller, before you order. A listing that publishes maximum pressure in pascals is either auto-translated or careless, and you should not assume what it converts to. Confirm the tank is ASME certified and look for the stamp date on the receiver.

Second, plan the electrical install. No plug means a hardwired 230V connection, which needs a proper breaker and a permitted install in most jurisdictions. Third, weigh the 85 dBA figure against your household. A machine this light and this compact is tempting in a small space, and small spaces are exactly where that noise becomes a daily complaint.

Do You Actually Need 60 Gallons?

Honestly, a lot of garages do not. The forum consensus on compressor sizing is unusually consistent: most do-it-yourself owners would be better served by 20 to 30 gallons, and the reason people upgrade to 60 or 80 is that they matched tank size to a task instead of matching airflow to the tool. A 60-gallon tank full of air does not help if the pump takes four minutes to refill it.

Here is the math that should drive the decision, based on what each tool actually demands. A finish nailer wants roughly 0.3 to 0.5 CFM. An air ratchet wants 3 to 7. A framing nailer wants 3 to 5. An air sander wants 11 to 13 or more. An HVLP paint gun wants 15 to 25 or more. Run two of those at once and you need a compressor above 20 CFM, which is a different class of machine entirely.

If your list is finish nailing, ratchets, inflating and occasional brake work, a 20 to 30 gallon portable would serve you and take up a fraction of the space. If you sand, blast or spray, you need airflow, and at that point 60 gallons with 12 to 15 CFM is the right shape. If you do both, the smart setup is a small portable for the portable jobs and a 60-gallon for the shop work, which is the two-compressor garage that most experienced owners build over time.

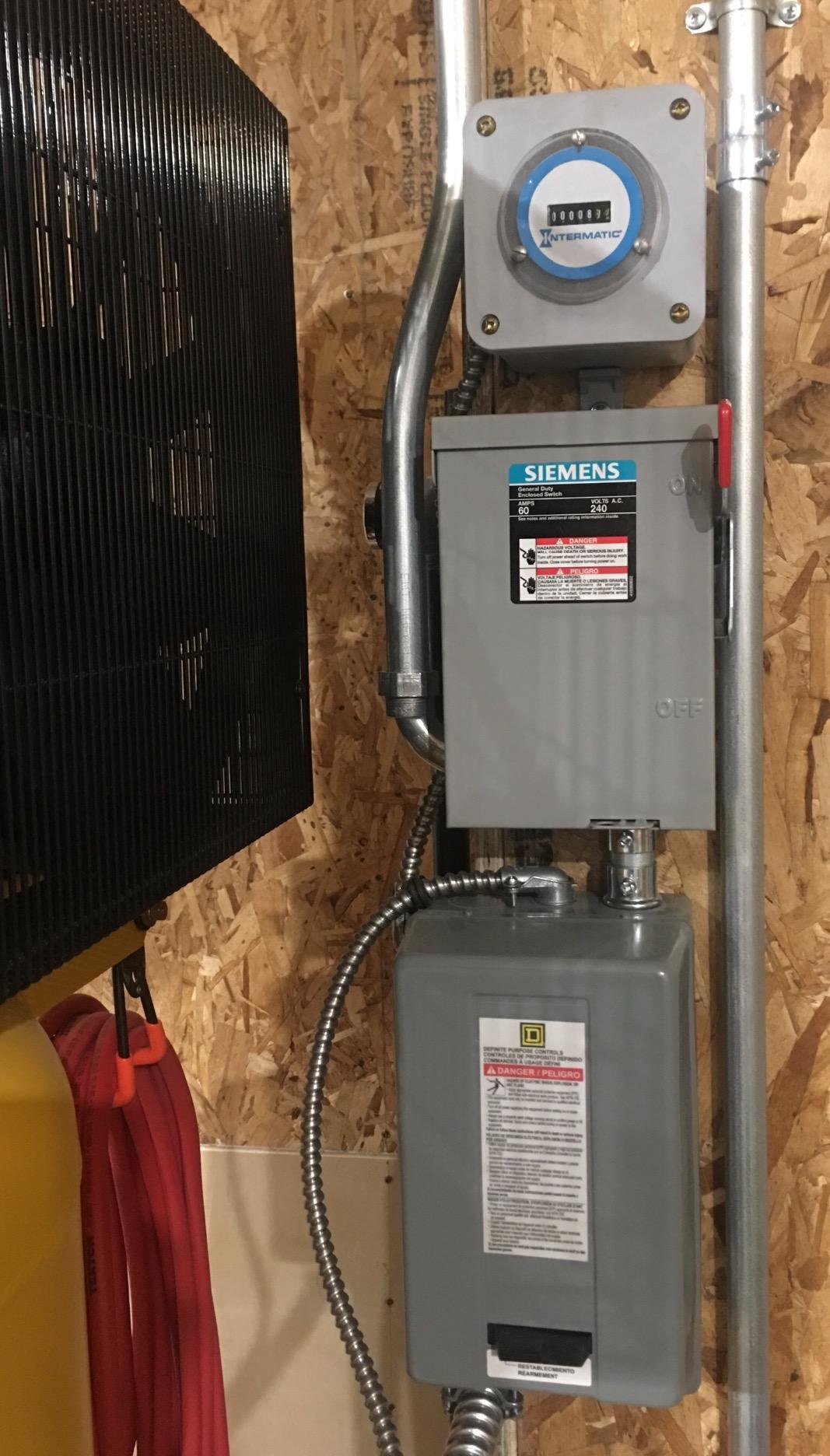

Electrical Requirements: 240V Circuits, Breaker Size and Wire Gauge

Every quality 60-gallon compressor on this list is 230 or 240 volt, single-phase, with no plug, and nearly all of them need a dedicated circuit. This is the step that stops more garage projects than the purchase itself, and it is the section no competitor publishes. Get it right before the machine arrives, not after.

The rule is simple: the circuit matches the motor nameplate. A 3.7 HP motor rated 20A goes on a 20A breaker with 12 gauge wire. A 5 HP motor rated 23A or 30A goes on a 30A breaker with 10 gauge wire. Never put a 5 HP machine on a 20A circuit, and never share a compressor circuit with a welder, a freezer, or anything else that draws hard.

The tripped-breaker stories in garage forums almost all trace back to one of three causes: a 5 HP motor on a 20A circuit, a shared circuit with another high-draw device, or an extension cord instead of a real run. If your panel has no spare slot, or if the compressor is more than 25 feet from the panel, have an electrician pull the circuit. A 240V install is a small, fast, permitted job, and it is far cheaper than replacing a motor that burned up on an undersized breaker.

How to Choose a 60 Gallon Air Compressor

Judge these in order, and skip the tank size entirely until the end. First is SCFM at 90 PSI, which is the only number that tells you whether your tool will run smoothly. Listings frequently quote the CFM at 40 PSI because it is a bigger number, so read which pressure the figure is measured at. Second is stage: two-stage for sustained heavy work, single-stage for intermittent garage use.

Third is lubrication. Oil-lubricated pumps need a level check monthly and an oil change every few hundred run hours, and they are mechanically tougher. Oil-free pumps need neither and deliver cleaner air for painting, but the piston pumps wear faster and are a poor match for blasting or heavy grinding. Fourth is noise, and this is a household decision rather than a technical one. Published figures across this group run from 65 dBA to 87 dBA, and that range is the difference between a compressor you tolerate and one you resent.

Fifth is drive and motor. Belt drive with a cast iron pump is the durable choice; direct drive is simpler and cheaper. A magnetic starter and a thermal motor protector are worth paying for, because they are what stop a seized pump from taking the motor with it. Sixth is tank construction, where an ASME-certified vertical receiver with a visible stamp date should be your minimum. Vertical tanks win on floor space in nearly every garage, because a horizontal 60-gallon tank needs roughly twice the length.

Last is support. A brand with regional parts availability and a real warranty beats a marginally better specification sheet with nobody to call. Our experience with the units in this list is that long-term failures cluster in motors and pressure switches, not pumps, so check that those parts are easy to get before you buy.

On maintenance, the schedule that keeps a home-garage compressor alive is short: check the oil level monthly, drain the tank weekly so water never sits in the bottom, inspect the intake filter every three to six months, change the oil every few hundred run hours or annually, and have the safety valve tested annually. None of it takes more than an hour a year if you build the habit, and skipping the weekly drain is what causes rust inside an otherwise fine tank.

What to Avoid When Buying a 60 Gallon Compressor

Avoid listings where the CFM figure is vague or quoted only at 40 PSI, and avoid any seller who will not state airflow at 90 PSI in writing. Inflated airflow claims are the most common misrepresentation in this category, and they are the number you will feel first when a sander stalls.

Avoid unknown brands with no serviceable parts network, and be cautious with marketplace listings that undercut established brands by a wide margin. A used 60-gallon compressor is fine if the tank interior is clean and dry, but pass on any unit with internal rust, standing water, a missing pressure relief valve, or no readable ASME stamp. Used buyers in the forums warn about exactly this: a rusty tank interior ruins the purchase no matter how good the outside looks.

Also avoid pairing an oil-free pump with heavy blasting or grinding duty, and avoid buying a 60-gallon tank to compensate for a weak 3 HP single-stage pump. Both are common and both disappoint. Buy the airflow your tools demand, and buy the tank size that fits your floor plan.

Frequently Asked Questions

Final Verdict: Which 60 Gallon Air Compressor to Buy in 2026

The Campbell Hausfeld XC602100 wins this roundup. Its two-stage cast-iron pump, three-year warranty, 60-gallon vertical ASME tank and 130-review track record make it the safest of the best 60 gallon air compressors for home garages, provided you stay under 8 CFM of demand. Buy it if your work is nailing, ratcheting, inflating and light shop duty, and wire it to a dedicated 230V circuit first.

For sustained heavy work, the DeWalt DXCMV5076055 puts out the most air at 15.3 CFM and holds 175 PSI, and the DeWalt DXCM603 gives you 14.6 SCFM at 90 PSI in a compact vertical package with the strongest rating distribution here. For the most robust machine and long parts availability, the Quincy QT-54 is hard to argue with, as long as you have a 30A circuit and a plan for pallet delivery. For an attached garage, the Quincy Q13160VQ is the quietest conventional choice, and the California Air Tools 60040DCADC is the pick if paint work outranks everything else. For tight floor space, the DeWalt DXCM602 saves 22.5 inches but is the loudest machine here at 87 dBA.

And if your garage work is mostly nailers and tires, skip all of it and buy the small portable. Match the compressor to the tool with the highest CFM demand, give it a dedicated circuit, drain the tank every week, and the machine you already own will still be running in ten years. Our pneumatic tool compressor guide covers the smaller sizes in full.
